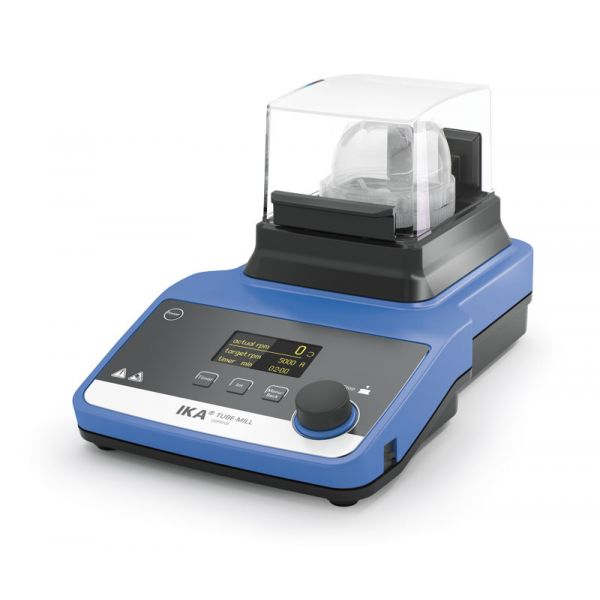

IKA Tube Mill control

- The world’s first patented Tube Mill control is a batch mill with disposable grinding chamber.
- Eliminates possibility of cross-contamination and the effort of cleaning.
- The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any
   time.
- The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials.
- It is especially suitable for grinding seeds, such as corn and wheat.
- During development of the mill, particular emphasis was placed on security.
- The mill will only start when the hood is closed.
- When the grinding chamber is not inserted properly or not closed properly, the drive unit will display an error
   message and the drive will not start.
- During operation, the grinding chamber cannot be opened.
- The drive and the grinding chambers are secured with a labyrinth seal.
- No dust can escape from the chamber or penetrate the drive.
- Clearly arranged, multilingual OLED-display.
- Timer, adjustable from 5 s to 3 min.
- USB interface for control and documentation of all the parameters.
- Interval operation available.
- Infinitely variable speed from 5000 to 25000 rpm.
- Various operating modes.
- Adjustable safety speed.
- Adjustable safety time.
- Programmable and storable test conditions.
- Error Code Display.
- Reproducible test results.
- Easy operation with touch keypad.
- Dust proof sealed housing.
- Quiet operation.
