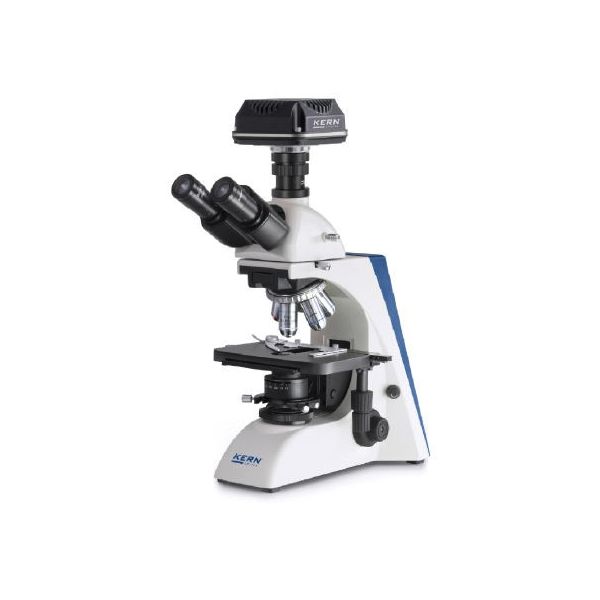

Kern OBN 135C832 digital microscope set
Reference
A39496
Sales Unit
1 Piece
The professional, flexible OBN range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 50-75 mm)
- Infinity optical system
- Objective quality: Infinity Plan
- Objectives: 4×/10×/20×/40×/100×
- Quintuple nosepiece
- Included camera: ODC 832
- Resolution camera: 5 MP
- Interface: USB 3.0 (14,2 - 101,2 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 30° (Siedentopf)
- Tube can be rotated 360°
- Diopter adjustment: both-sided
- The OBN series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user
- 3W-LED (transmitted)
- The series has a professional Koehler illumination unit with an adjustable field diaphragmn as well as height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diapgragm
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OBN 135C832 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 390 mm × 200 mm × 400 mm |
| Weight | 10,8 kg |
| Reference | A39496 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity Plan |
| Condenser | 1,25 Abbe condenser |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Objectives | 4x/10x/20x/40x/100x |
No price available or do you need more info for this product? Request your info with the form below.
