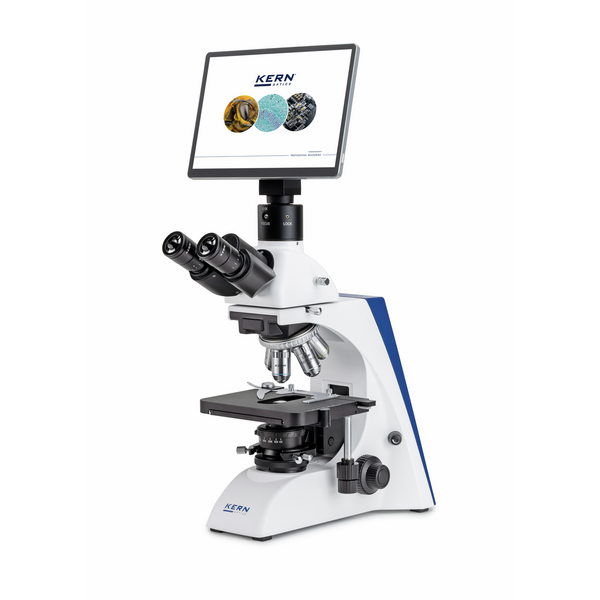

Kern dig. microscoop set OBN 135T251

Reference

A50394

Sales Unit

1 Piece

The professional, flexible OBN range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Trinocular, (eye relief 50-75 mm)
Infinity optical system
Objective quality: Infinity Plan
Objectives: 4×/10×/20×/40×/100×
Quintuple nosepiece
Included camera: ODC 251
Resolution camera: 8 MP
Interface: Wifi, USB 2.0, USB 3.0 HDMI, Ethernet, Bluetooth
Sensor: CMOS
Sensor size: 1/1.8"
Tube inclination: 30° (Siedentopf)
Tube can be rotated 360°
Diopter adjustment: both-sided
The OBN series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user
3 W LED transmitted illumination
The series has a professional Koehler illumination unit with an adjustable field diaphragmn as well as height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diapgragm
The adapted KERN ODC 251 tablet-camera been specially developed for simple, direct monitoring of samples on the screen, whether used in the laboratory, in quality testing or in training and studying. It comes with a 10.5" HD display
The adapted C-mount camera is available in different versions and can be used anywhere

More Information

More Information
Manufacturer reference	OBN 135T251
eclass	32010000
leadtime	5
Brand	KERN
ISO code	PCE
UNSPSC code	41111700
Overall dimensions	390 mm x 235 mm x 620 mm
Weight	11 kg
Reference	A50394
Sales Unit	1 Piece
Objectif quality	Infinity Plan
Condenser	1,25 Abbe condenser
Illumination	3W LED (transmitted)
Eyepiece	2 x HWF 10×/∅ 20 mm
Tube	Trinocular (eye relief 50 -75 mm)
Objectives	4x/10x/20x/40x/100x
