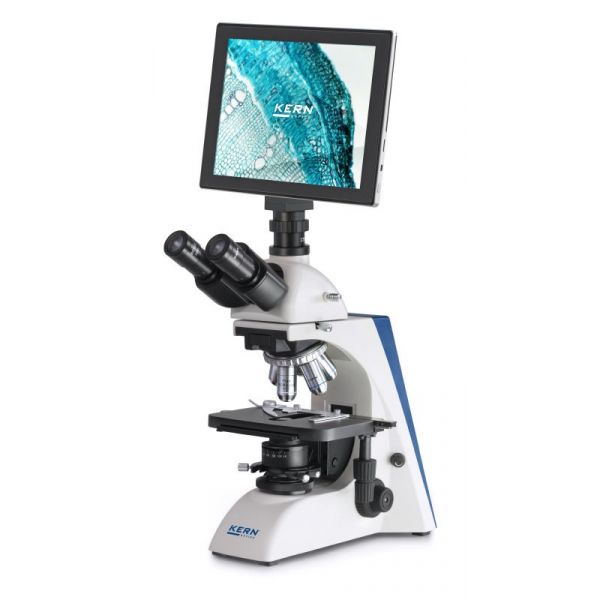

Kern OBN 135T241 digital microscope set
Reference
A39497
Sales Unit
Piece
The professional, flexible OBN range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 50-75 mm)
- Infinity optical system
- Objective quality: Infinity Plan
- Objectives: 4×/10×/20×/40×/100×
- Quintuple nosepiece
- Included camera: ODC 541
- Resolution camera: 5 MP
- Interface: Wifi, USB 2.0, HDMI, SD (15 - 30 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 30° (Siedentopf)
- Tube can be rotated 360°
- Diopter adjustment: both-sided
- The OBN series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user
- 3W-LED (transmitted)
- The series has a professional Koehler illumination unit with an adjustable field diaphragmn as well as height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diapgragm
- The adapted KERN ODC 214 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OBN 135T241 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 390×200×400 mm |
| Weight | 11 kg |
| Reference | A39497 |
| Sales Unit | Piece |
| Objectif quality | Infinity Plan |
| Condenser | 1,25 Abbe condenser |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Objectives | 4x/10x/20x/40x/100x |
