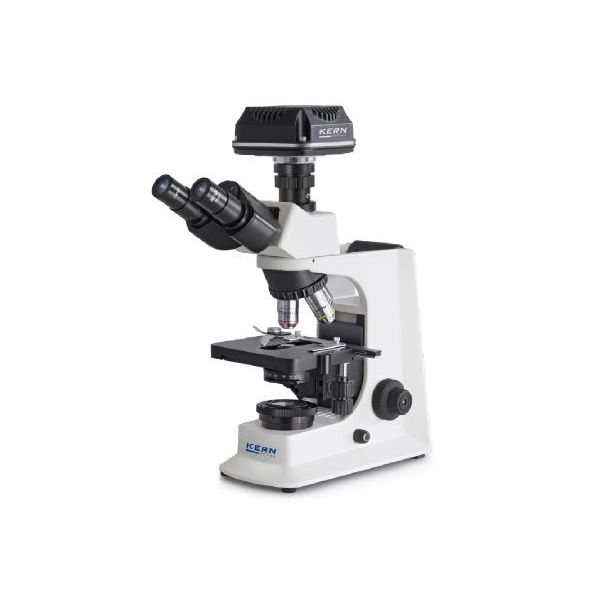

Kern OBL 137C825 digital microscope set
Reference
A39516
Sales Unit
1 Piece
The high-performance OBL range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 50-75 mm)
- Infinity optical system
- Objective quality: Infinity E-Plan
- Objectives: 4×/10×/40×/100×
- Quadplex nosepiece
- Included camera: ODC 825
- Resolution camera: 5 MP
- Interface: USB 2.0 (6,8 - 55 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 30° (Siedentopf)
- Tube can be rotated 360°
- Diopter adjustment: one-sided
- 3W-LED (transmitted)
- The OBL series stands out through its infinity optical unit and is therefore ideally suited for all demanding transmitted illumination applications. The robust and ergonomic stand base guarantees safe and comfortable working
- The fixed, pre-centred and focusable 1,25 Abbe condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OBL 137C825 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 394 mm x 185 mm x 377 mm |
| Weight | 7 kg |
| Reference | A39516 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity E-Plan |
| Condenser | 1,25 Abbe condenser precentered |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Objectives | 4x/10x/40x/100x |
No price available or do you need more info for this product? Request your info with the form below.
