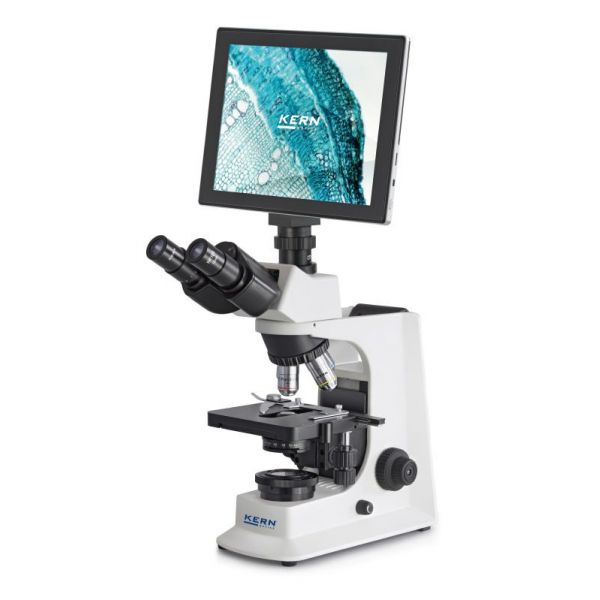

Kern OBL 135T241 digital microscope set
Reference
A39515
Sales Unit
Piece
The high-performance OBL range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 50-75 mm)
- Infinity optical system
- Objective quality: Infinity E-Plan
- Objectives: 4×/10×/40×/100×
- Quadplex nosepiece
- Included camera: ODC 241
- Resolution camera: 5 MP
- Interface: Wifi, USB 2.0, HDMI, SD (15 - 30 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 30° (Siedentopf)
- Tube can be rotated 360°
- Diopter adjustment: one-sided
- Illumination 6V/20W-Halogen (transmitted) (Philips)
- The OBL series stands out through its infinity optical unit and is therefore ideally suited for all demanding transmitted illumination applications. The robust and ergonomic stand base guarantees safe and comfortable working
- The fixed, pre-centred and focusable 1,25 Abbe condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre
- The adapted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OBL 137T241 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 395 mm × 200 mm × 380 mm |
| Weight | 7,3 kg |
| Reference | A39515 |
| Sales Unit | Piece |
| Objectif quality | Infinity E-Plan |
| Condenser | 1,25 Abbe condenser precentered |
| Illumination | 20W Halogen (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Objectives | 4x/10x/40x/100x |
No price available or do you need more info for this product? Request your info with the form below.
