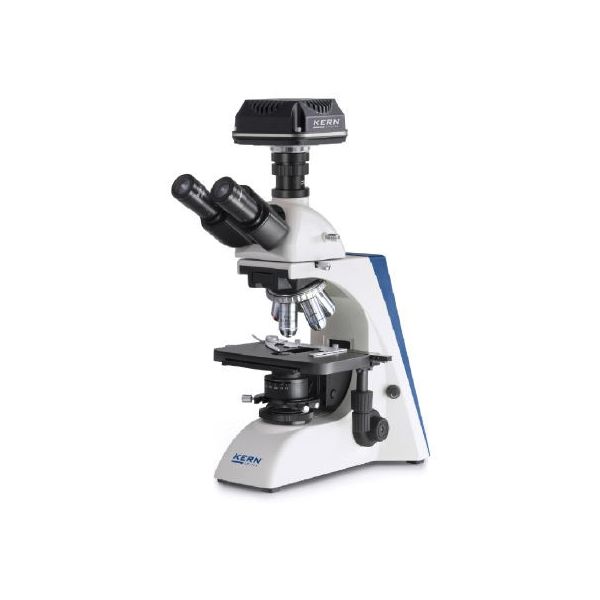

Kern OBN 132C825 digital microscope set

Reference
A39492
Sales Unit
Piece

The professional, flexible OBN range is now also available to you as a comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.

Login for Price
  • Trinocular, (eye relief 50-75 mm)
  • Infinity optical system
  • Objective quality: Infinity Plan
  • Objectives: 4×/10×/20×/40×/100×
  • Quintuple nosepiece
  • Included camera: ODC 825
  • Resolution camera: 5 MP
  • Interface: USB 2.0 (6,8 - 55 FPS)
  • Sensor: CMOS
  • Sensor size: 1/2.5"
  • Tube inclination: 30° (Siedentopf)
  • Tube can be rotated 360°
  • Diopter adjustment: both-sided
  • The OBN series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user
  • 6 V/20 W halogen transmitted illumination (Philips)
  • The series has a professional Koehler illumination unit with an adjustable field diaphragmn as well as height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diapgragm
  • The adapted C-mount camera is available in different versions and can be used anywhere
More Information
Manufacturer reference OBN 132C825
eclass 32010000
leadtime 5
Brand KERN
ISO code PCE
UNSPSC code 41111700
Overall dimensions 390 mm x 200 mm x 400 mm
Weight 9,8 kg
Reference A39492
Sales Unit Piece
Objectif quality Infinity Plan
Condenser 1,25 Abbe condenser
Illumination 20W Halogen (transmitted)
Eyepiece 2 x HWF 10×/∅ 20 mm
Tube Trinocular (eye relief 50 -75 mm)
Objectives 4x/10x/20x/40x/100x
