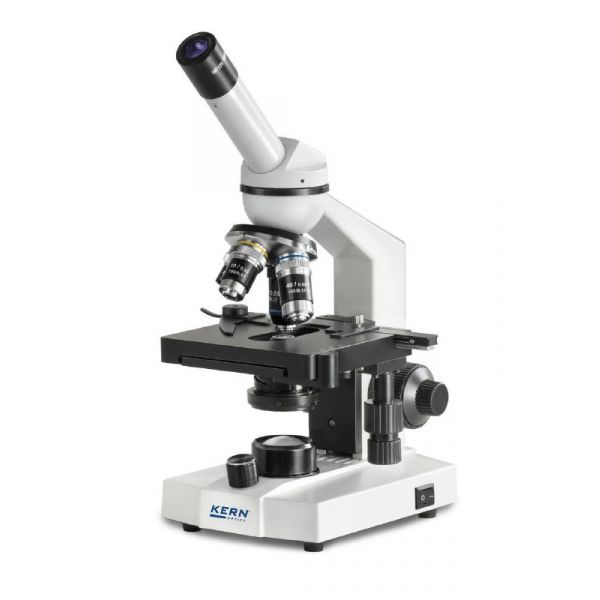

Kern OBS 105 compound microscope monocular

Reference
A39462
Sales Unit
Piece

The KERN OBS range is a solid and simple school microscope range, which is easy to use due to its intuitive control elements. The OBS microscope is suitable for translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/ parasites).

Login for Price
  • Monocular
  • Objectives: 4 × / 10 × / 40 ×
  • Mechanical table, 115mm × 125mm (W × D), Travel: 75mm × 18mm
  • Table with coaxial, coarse and fine focus knobs on both sides, scale: 2.5 μm
  • Optical system: Finite optical system (DIN)
  • Tube can be rotated 360 °
  • Condenser: 1.25 Abbe
  • Objective quality: achromatic
  • Quadruple nosepiece
  • Tube inclination: 45 °
More Information
Manufacturer reference OBS 105
eclass 32010000
leadtime 5
Brand KERN
ISO code PCE
UNSPSC code 41111700
Overall dimensions 130 mm x 300 mm x 310 mm (b x d x h)
Weight 3 kg
Reference A39462
Sales Unit Piece
Objectif quality Achromatic
Condenser 1,25 Abbe condenser
Illumination 0.5W LED (transmitted) (incl. Battery, rechargeable)
Eyepiece 1 x WF 10×/∅ 18 mm
Tube Monocular
Colour filters Blue
Stage Mechanical
Objectives 4x/10x/40x
