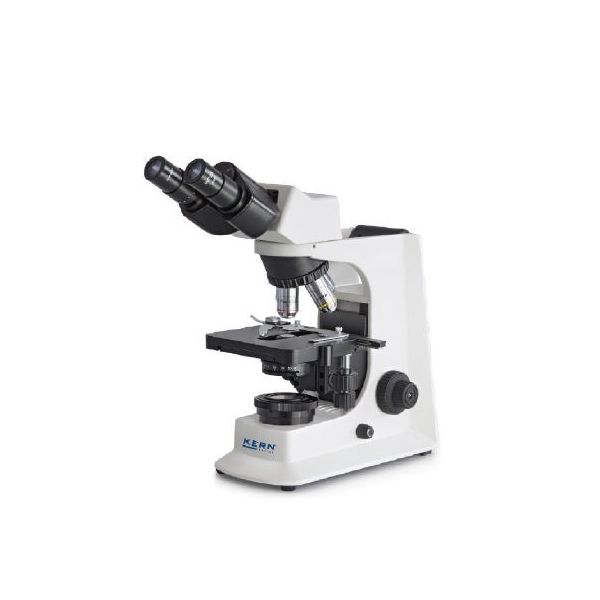

Kern OBL 127 compound microscope binocular
Reference
A39448
Sales Unit
1 Piece
The OBL series stands out through its infinity optical unit and is therefore ideally suited for all demanding transmitted illumination applications. The robust and ergonomic stand base guarantees safe and comfortable working. The OBL microscope is suitable for translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue).
Related Products
- Applications: Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, water analysis and breweries
- Binocular, interpupillary distance 50-75 mm (for infinity system)
- Objectives: 4×/10×/40×/100×
- Mechanical table with space for two samples, 145 mm × 130 mm (w x d), Travel: 76 mm × 52 mm
- Table with coaxial coarse and fine focus knobs on both sides, scale: 2 µm
- Optical system: Infinity optical system
- Tubus can be rotated 360°
- Diopter adjustment: one-sided
- Condenser: 1,25 Abbe (pre-centred)
- Objective quality: Infinity E-Plan
- Quadruple nosepiece
- Tube inclination: 30°
| Manufacturer reference | OBL 127 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 395 mm x 200 mm x 380 mm (b x d x h) |
| Weight | 6,7 kg |
| Reference | A39448 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity E-Plan |
| Condenser | 1,25 Abbe condenser precentered |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Binocular (eye relief 50-75 mm) |
| Colour filters | Blue (built-in) |
| Stage | Mechanical |
| Objectives | 4x/10x/40x/100x |
