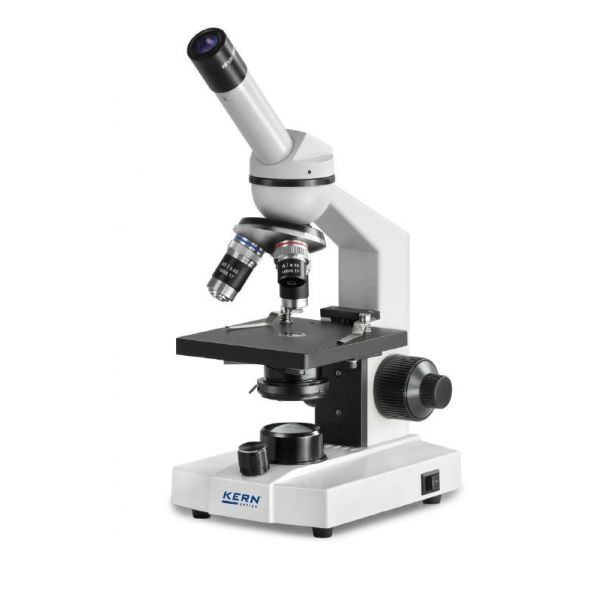

Kern OBS 102 compound microscope monocular
Reference
A39458
Sales Unit
1 Piece
The KERN OBS range is a solid and simple school microscope range, which is easy to use due to its intuitive control elements. The OBS microscope is suitable for translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/ parasites).
Related Products
- Monocular
- Objectives: 4 × / 10 × / 40 ×
- Fixed table, 110 mm × 120 mm (w x d)
- Table with coaxial, coarse and fine focus knobs on both sides, scale: 2,5 μm
- Optical system: Finite optical system (DIN)
- Tube can be rotated 360 °
- Condenser: 0.65 (fixed condenser)
- Objective quality: achromatic
- Triple nosepiece
- Tube inclination: 45 °
| Manufacturer reference | OBS 102 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 130 mm x 300 mm x 310 mm (b x d x h) |
| Weight | 3 kg |
| Reference | A39458 |
| Sales Unit | 1 Piece |
| Objectif quality | Achromatic |
| Condenser | 0,65 (fixed condenser) |
| Illumination | 0.5W LED (transmitted) (incl. Battery, rechargeable) |
| Eyepiece | 1 x WF 10×/∅ 18 mm |
| Tube | Monocular |
| Colour filters | Blue |
| Stage | Fix |
| Objectives | 4x/10x/40x |
