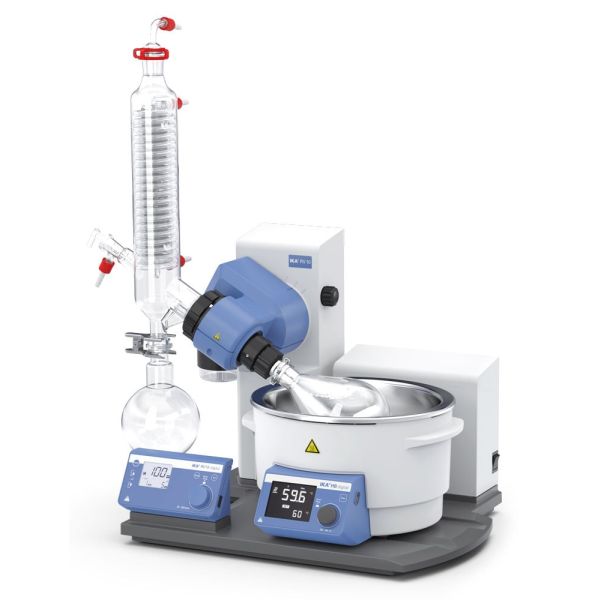

IKA RV 10 digital V-C rotary evaporator - 1600 cm² - 5 – 280 rpm

The IKA RV 10 digital V-C is a rotary evaporator from the RV 10 line, with a universal water/oil heating bath, vertical glassware and a condenser with a 1600 cm² cooling surface. The 4 L heating bath heats up to 180°C and is controlled from the main unit via an IR interface. Via the RS 232 interface, the unit can be remote-controlled with the IKA labworldsoft software.

The speed range is 5 – 280 rpm, with reversible direction of rotation, smooth start, left-right interval and timer function. The motorised lift (140 mm stroke) has an automatic lift-out function in the event of a power failure to prevent superheating of the solvent. Individually adjustable safety temperature circuits, dry-run protection, an adjustable lower end stop and locking of the bath setting complete the safety features. A push-off mechanism loosens tightly fitted glassware.

Features

• Vertical glassware with 1600 cm² condenser
• Universal 4 L water/oil heating bath, room temperature to 180°C, 1350 W
• Speed 5 – 280 rpm, reversible direction of rotation, smooth start and left-right interval
• Timer function
• Motorised lift (140 mm stroke) with automatic lift-out function in the event of a power failure
• Individually adjustable safety temperature circuits and dry-run protection
• Adjustable lower end stop and locking of the bath setting
• RS 232 interface for control via labworldsoft; heating bath controlled via IR interface
• Push-off mechanism to loosen tightly fitted glassware
• Ergonomically placed handles on the heating bath

Technical data

• Type of cooling: Vertical
• Cooling surface: 1600 cm²
• Speed range: 5 – 280 rpm
• Lift: Motor
• Stroke: 140 mm
• Heating temperature range: Room temperature – 180°C
• Heating output: 1350 W
• Filling volume max.: 4 L
• Dimensions (W × H × D): 500 × 430 × 440 mm
• Weight: 32.67 kg
• Protection class according to DIN EN 60529: IP 20
• Voltage: 220 – 240 V
• Power input: 1400 W
