IKA ICC basic pro 9 heating bath circulator - 9 L - 150°C

Reference
A55700
Sales Unit
1 Piece

IKA package with the ICC basic compact immersion circulator and the IB 9 pro stainless steel bath of 9 L (size S), for temperatures up to 150°C in the stainless steel bath, with a temperature stability of ±0.02 K and a heat output of 2000 W.

Login for Price
We found other products you might like!
  1. IKA ICC 150 lite pro 20 heating bath circulator - 20 L - 150°C Ref. A55698
    Login for Price More details
  2. IKA ICC basic eco 8 heating bath circulator - 8 L - 100°C Ref. A55699
    Login for Price More details
  3. IKA ICC basic pro 12 heating bath circulator - 12 L - 150°C Ref. A55701
    Login for Price More details

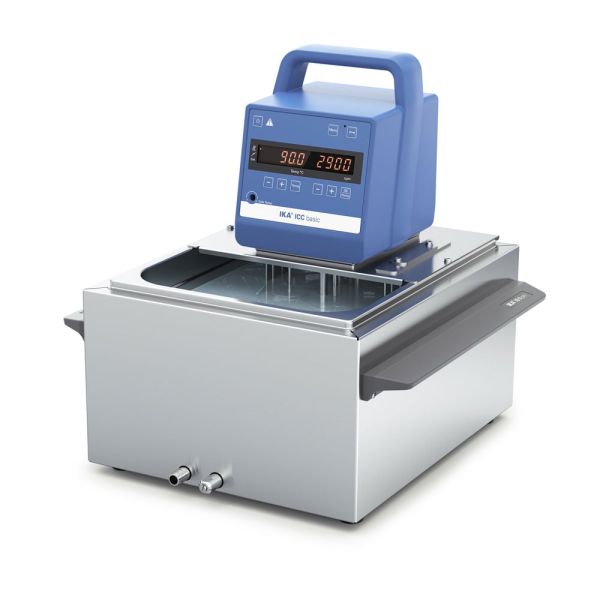

The IKA ICC basic pro 9 is a ready-to-connect temperature control package comprising the ICC basic compact immersion circulator, the IB 9 pro stainless steel bath (size S) and the BS.ICC small bath bridge. The ICC basic uses PID control and a PT 100 working sensor to regulate the temperature from room temperature +10 K (at 1000 rpm) to 150°C, with a temperature stability of ±0.02 K (DIN 12876). The working and safety temperatures are shown on LED displays. The pressure/suction pump with adjustable capacity delivers up to 18 l/min.

The maximum temperature in the stainless steel bath is 150°C. The package measures 374 × 377 × 388 mm overall; the bath opening is 195 × 100 mm (max. 230 × 121 mm at the upper edge) and the immersion depth is 85 – 125 mm. The technical data relate to the circulator included in the package.

Features

  • Working temperature from room temperature +10 K (at 1000 rpm) to 150°C; down to -20°C with external cooling
  • Temperature stability ±0.02 K according to DIN 12876
  • PID control with a PT 100 working sensor and a separate PT1000 safety sensor
  • LED display of working and safety temperature, display resolution 0.1 K
  • Adjustable safety circuit 0 – 160°C, low-level and over-level protection
  • Optical and acoustic warning, including excess temperature warning
  • Pressure/suction pump with adjustable pump capacity: max. 18 l/min, max. pump pressure 0.3 bar, max. suction pressure 0.2 bar
  • Calibration option
  • Heat output 2000 W, 230 V, 50/60 Hz; RS 232 and Micro-USB interface
  • Class III (FL) according to DIN 12876, protection class IP 21

Technical data

  • Class designation according to DIN 12876: III
  • Heating output: 2000 W
  • Working temperature: Room temperature + 10 K at 1000 rpm – 150°C
  • Operating temperature min. (with external cooling): -20°C
  • Temperature stability DIN 12876: ±0.02 K
  • Adjustable safety circuit: 0°C → 160°C
  • Pump type: Pressure/suction pump
  • Pump pressure max. (zero flow): 0.3 bar
  • Pump pressure, suction side (zero flow): 0.2 bar
  • Dimensions (W × H × D): 145 × 340 × 200 mm
  • Weight: 14 kg
  • Protection class according to DIN EN 60529: IP 21
  • Voltage: 230 V
  • Power input: 2100 W

Included in delivery

  • ICC basic compact immersion circulator
  • IB 9 pro stainless steel bath (size S)
  • BS.ICC bath bridge, small
More Information
Iso Code PCE
Brand Ika
UNSPSC code 41102400
Manufacturer reference 0008035100
ISO code PCE
leadtime 10
eclass 32010819
Reference A55700
Weight 14 kg
Warranty 3 years
With display Yes
Sales Unit 1 Piece
Overall dimensions 145 x 340 x 200 mm
Heating power 2000 W
