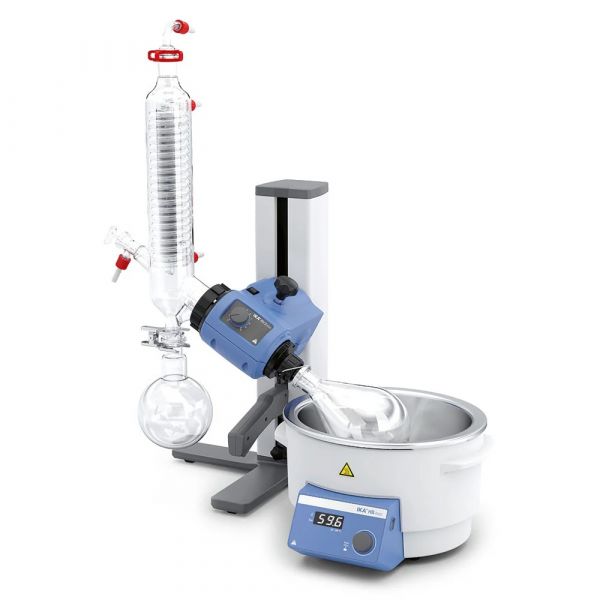

IKA Rotary evaporator RV 3 V
Reference
A44628
Sales Unit
Piece
The new RV 3 Rotary Evaporator is the ideal entry-level model of the IKA rotary evaporator portfolio. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500 cm² cooling surface.
Related Products
- New: 4 l heating bath for up to 99°C
- Water heating bath with digital temperature display and carrying handles
- Mechanical lift end-point safety stop
- Locking mechanism: red indicator shows unlocked position of the vapor tube
- Manual lift for precise positioning of the glassware
- Adjustable immersion angle
- Single-handed manual lift handling, suitable for left and right-handed operators
- Stepless speed setting with dial control and speed display
- Speed range: 20-300 rpm
- Low device voltage (24V) ensures user safety
- Flask clamping mechanism with integrated push-off function for easy exchange of evaporation flasks
- High-efficiency condenser with 1500 cm² cooling surface - low space requirements
- Type of cooling: vertical
- Motor principle: DC
- Stroke: 150 mm
- Heating temperature range: room temp. - 99 ° C
- Dimensions: 440 mm x 530 mm x 330 mm (b x h x d)
- Weight: 28,3 kg
- Permissible ambient temperature: 5 - 40 °C
- Permissible relative humidity: 80%
- Protection class according to DIN EN 60529: IP 20
- Voltage: 100 - 240 V
- Frequency: 50/60 Hz
- Power input: 1400 W
- Compatible with the entire range of IKA RV 10 glassware
- Scope of delivery: RV 3 Eco, HEB eco S099, RV 10.1 Glassware vertical, RV 10.70 Vapor Tube (NS 29/32), RV 10.8001 Seal
| UNSPSC code | 41103814 |
|---|---|
| leadtime | 14 |
| Manufacturer reference | 0010003324 |
| Brand | Ika |
| ISO code | PCE |
| eclass | 32010000 |
| Speed/frequency | 20 - 300 rpm |
| Reference | A44628 |
| Sales Unit | Piece |
| Weight | 28,3 kg |
| Power supply | 240 V |
| Overall dimensions | 440 mm x 530 mm x 330 mm |
| Refrigerated | Vertical |
| Vacuum controller | Not included |
| Bath capacity | 4 L |
