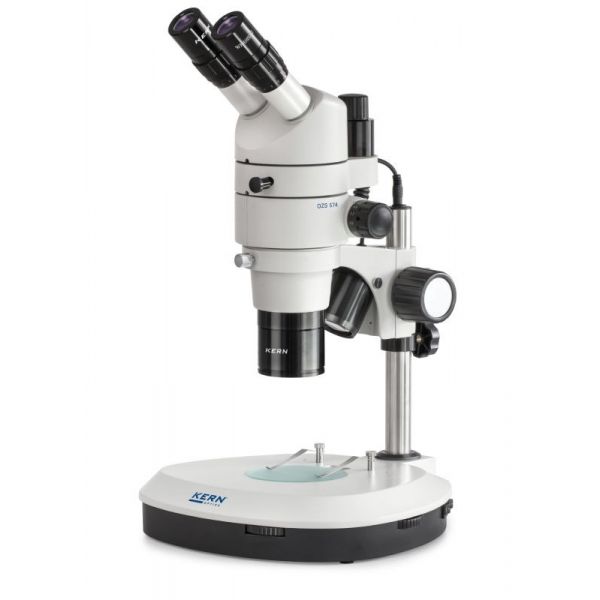

Kern OZS 574 stereo zoom microscope trinocular
Reference
A39593
Sales Unit
1 Piece
The KERN OZS-574 is a special, high-quality stereo zoom microscope with parallel optics for demanding analyses. The microscope is suitable for samples with focus on three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components.
Related Products
- Applications: in vitro fertilization, parasite detection, zoology and botany, tissue preparation, dissection, quality control, electronics and semiconductor industry, assembly and repair
- Trinocular, interpupillary distance (52-76mm)
- Field of View: ∅ 27.5 – 4.4
- Objective zoom: 0.8× – 5×
- Tube inclination: 45°
- Optical System: Parallel Optics
- Brightness adjustable (separate)
- Magnification Ratio: 6.25:1
- Light distribution: 50:50
- Stage plate: black-white/∅ 94.5 mm
- Diopter Correction: both-sided
- Trinocular beamsplitter included, division 100:0
- The parallel optical system is a high-quality optical system and provides excellent images with the best contrast, color and depth of field with fatigue-free working. Refocusing is also only necessary in very few cases when magnifying the zoom
- Strong, continuously adjustable 3 W LED reflected and transmitted light variant
- The continuously adjustable magnification range from 8 to 50 times magnification allows you to work quickly and effectively
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures
- Pillar stand without illumination
- A C-mount adapter is required to connect a camera to the trinocular version
| Manufacturer reference | OZS 574 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 305 mm x 300 mm x 540 mm |
| Weight | 5,7 kg |
| Reference | A39593 |
| Sales Unit | 1 Piece |
| Illumination | 3W LED (incident); 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 22 mm |
| Tube | Trinocular (eye relief 52-76 mm) |
No price available or do you need more info for this product? Request your info with the form below.
