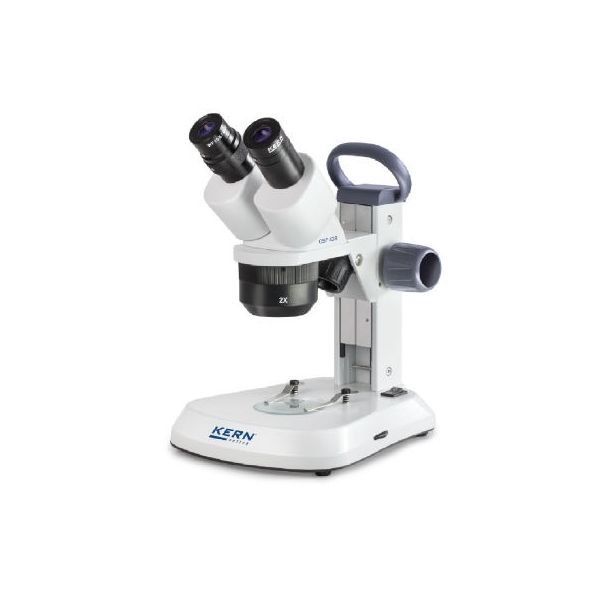

Kern OSF 438 stereo microscope binocular

Reference
A39545
Sales Unit
Piece
With its integrated handle as well as its stable arm curved stand, the Kern OSF-4G has been specially developed for schools and workshops. The OSF-438 is suitable for samples with focus on three-dimensional impression (depth, thickness), e.g. insects, seeds, circuit boards, components.
Login for Price
  • Applications: training, in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control
  • Binocular, interpupillary distance (55–75 mm)
  • Field of view: ∅ 20 mm
  • Objective zoom:  1×/2×/3×
  • Optical system: Greenough optics
  • Tube inclination: 45°
  • Brightness adjustable (separate)
  • Diopter adjustment: one-sided
  • The LED reflected and transmitted illumination included as standard guarantees the very best, continuously dimmable illumination of your sample
  • As well as very good optical characteristics, its ergonomic working surface means that it offers the highest level of convenience in this class
  • A turnable objective with three predefined magnifications is available to make your working procedure quicker and more effective
  • The eyepieces are fixed in the eyepiece tube, to stop them getting damaged or lost
  • The ergonomic shape and the stable mechanism which can be adjusted extremely accurately offer a high level of functionality and enable you to work quickly and efficiently with very little effort
More Information
Manufacturer reference OSF 438
eclass 32010000
leadtime 5
Brand KERN
ISO code PCE
UNSPSC code 41111700
Overall dimensions 230 mm x 180 mm x 275 mm
Weight 2,3 kg
Reference A39545
Sales Unit Piece
Illumination 1 W LED (incident); 0,35 W LED (transmitted)
Eyepiece 2 x WF 10×/∅ 20 mm
Tube Binocular (eye relief 55-75 mm)
