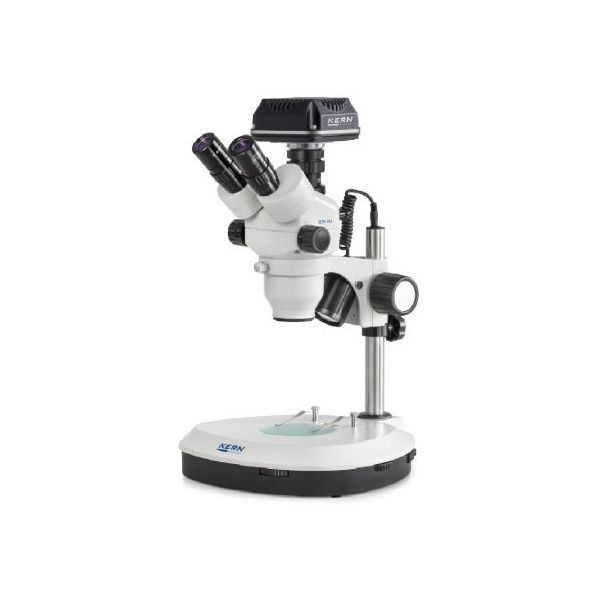

Kern OZM 544C825 stereo microscope digital set
Reference
A39562
Sales Unit
1 Piece
The excellent OZM range consists of excellent stereo zoom microscopes with above-average optical features. It is now also available as comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 52-76 mm)
- Greenough optical system
- Objectives: 0,7× – 4,5×
- Field of view: ∅ 32,8 – 5,1
- Magnification ratio: 6,4:1
- Light distribution: 50:50
- Included camera: ODC 825
- Resolution camera: 5 MP
- Interface: USB 2.0 (6,8 - 55 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 45°
- Tube can be rotated 360°
- Diopter adjustment: both-sided
- Illumination: 3W-LED (incident + transmitted)
- Brightness adjustable (separate)
- Stand: pillar
- The extraordinarily strong and continuously dimmable 3 W LED reflected and transmitted illumination ensures a flexible and particularly good lvel of illumination for your sample
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OZM 544C825 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 330 mm × 285 mm × 440 mm |
| Weight | 5,5 kg |
| Reference | A39562 |
| Sales Unit | 1 Piece |
| Illumination | 3W LED (incident); 3W LED (transmitted) |
| Eyepiece | HSWF 10×/∅ 23 mm |
| Tube | Trinocular (eye relief 52-76 mm) |
