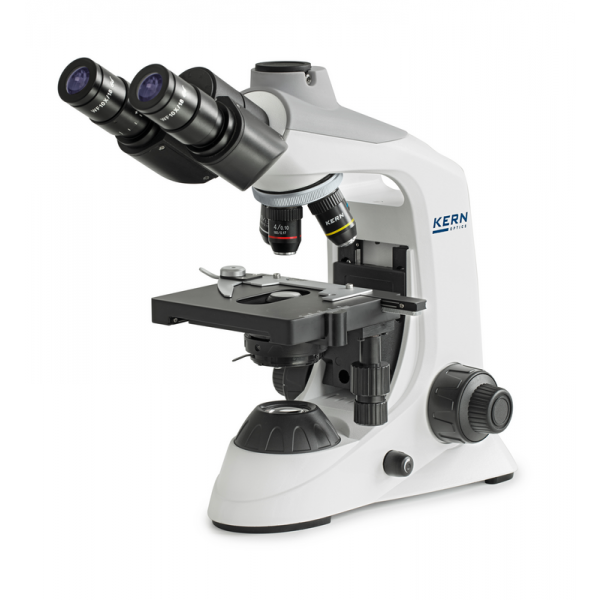

Kern OBE 134 compound microscope trinocular
Reference
A39483
Sales Unit
Piece
The brand new OBE-12/13 range stands out through its exclusive, dynamic device, which is second to none in terms of sturdy construction and ergonomics. The clever storage compartment on the back will enables quick practical storage for your power cable. Thanks to the USB connection technology, it is also possible to supply power using an external powerbank.
Related Products
- Applications: education, hematology, sediment research, general practice
- Trinocular
- Objectives: 4×/10×/40×/100x
- Mechanical table, 125 mm × 115 mm (w x d), Travel: 50 mm × 70 mm
- Table with coaxial, coarse and fine focus knobs on both sides, scale: 2 μm
- Optical system: Finite optical system (DIN)
- Diopter correction: one-sided
- Condenser: 1.25 Abbe
- Objective quality: achromat
- Quadruple nosepiece
- Tube inclination: 30°
| Manufacturer reference | OBE 134 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 360 mm x 150 mm x 320 mm (b x d x h) |
| Weight | 4,5 kg |
| Reference | A39483 |
| Sales Unit | Piece |
| Objectif quality | Achromatic |
| Condenser | 1,25 Abbe condenser |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 18 mm |
| Tube | Trinocular (eye relief 48 - 75 mm) |
| Stage | Mechanical |
| Objectives | 4x/10x/40x/100x |
No price available or do you need more info for this product? Request your info with the form below.
