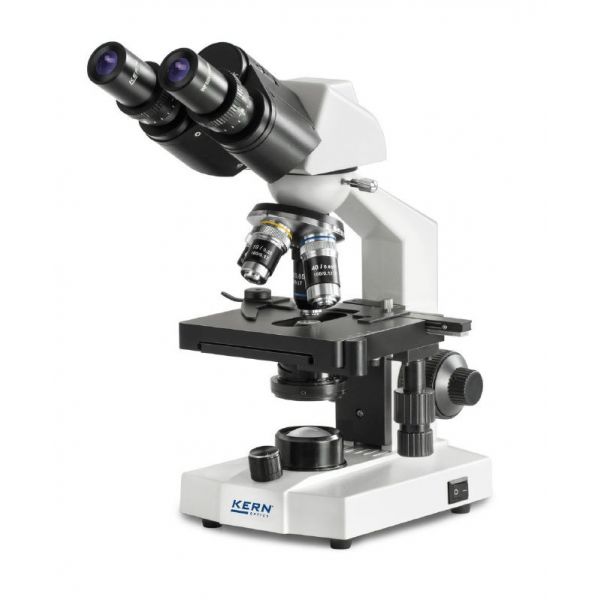

Kern OBS 106 compound microscope binocular
Reference
A39463
Sales Unit
1 Piece
The KERN OBS range is a solid and simple school microscope range, which is easy to use due to its intuitive control elements. The OBS microscope is suitable for translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/ parasites).
Related Products
- Binocular (interpupillary distance: 55-75 mm)
- Objectives: 4 × / 10 × / 40 ×
- Mechanical table, 115mm × 125mm (W × D), Travel: 75mm × 18mm
- Table with coaxial, coarse and fine focus knobs on both sides, scale: 2,5 μm
- Optical system: Finite optical system (DIN)
- Tube can be rotated 360 °
- Condenser: 1.25 Abbe
- Objective quality: achromatic
- Quadruple nosepiece
- Tube inclination: 30 °
| Manufacturer reference | OBS 106 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 130 mm x 300 mm x 310 mm (b x d x h) |
| Weight | 3 kg |
| Reference | A39463 |
| Sales Unit | 1 Piece |
| Objectif quality | Achromatic |
| Condenser | 1,25 Abbe condenser |
| Illumination | 0.5W LED (transmitted) (incl. Battery, rechargeable) |
| Eyepiece | 2 x WF 10×/∅ 18 mm |
| Tube | Binocular (eye relief 55-75 mm) |
| Colour filters | Blue |
| Stage | Mechanical |
| Objectives | 4x/10x/40x |
