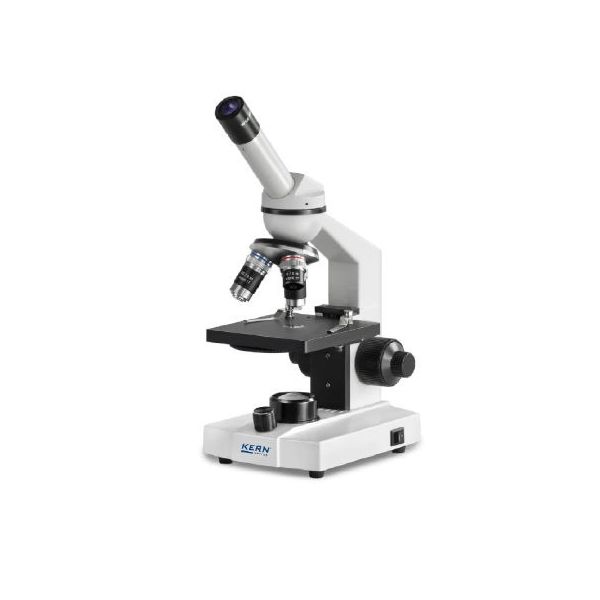

Kern OBS 101 compound microscope monocular

Reference
A39456
Sales Unit
Piece

The KERN OBS range is a solid and simple school microscope range, which is easy to use due to its intuitive control elements. The OBS microscope is suitable for translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/ parasites).

Login for Price
  • Monocular
  • Objectives: 4 × / 10 × / 40 ×
  • Fixed table, 110 mm × 120 mm (w x d)
  • Table with coaxial, coarse and fine focus knobs on both sides, scale: 2,5 μm
  • Optical system: Finite optical system (DIN)
  • Tube can be rotated 360 °
  • Condenser: 0.65 (condenser disc)
  • Objective quality: achromatic
  • Triple nosepiece
  • Tube inclination: 45 °
More Information
Manufacturer reference OBS 101
eclass 32010000
leadtime 5
Brand KERN
ISO code PCE
UNSPSC code 41111700
Overall dimensions 130 mm x 300 mm x 310 mm (b x d x h)
Weight 3 kg
Reference A39456
Sales Unit Piece
Objectif quality Achromatic
Condenser 0,65 (condenser disc)
Illumination 0.5W LED (transmitted) (incl. Battery, rechargeable)
Eyepiece 1 x WF 10×/∅ 18 mm
Tube Monocular
Colour filters Blue
Stage Fix
Objectives 4x/10x/40x
