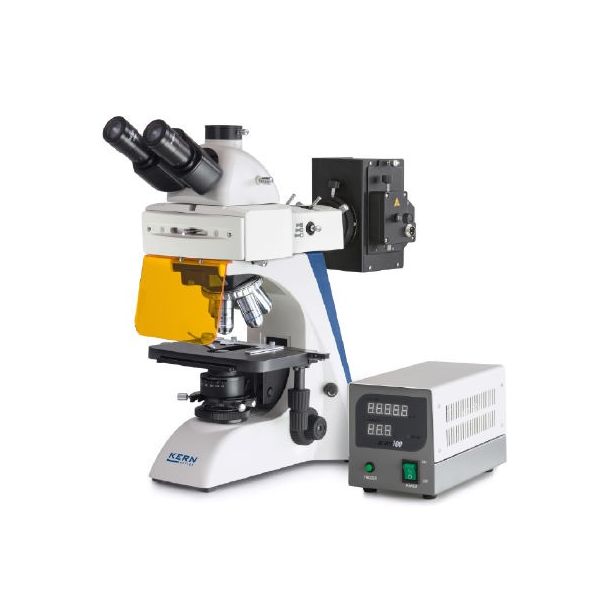

Kern OBN 148 compound microscope trinocular
Reference
A39455
Sales Unit
1 Piece
The fluorescence microscope in the OBN-14 series is based on the usual high quality and versatility of the OBN series. The outstanding,
stable design in combination with high-quality optics set the standard in fluorescence microscopy in this class. This OBN microscope is suitable specially for translucent, thin, low-contrast, challenging samples (e.g. immunofluorescence, FISH, DAPI staining, etc.)
Related Products
- Applications: Hematology, urology, gynecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, water analysis and breweries
- Trinocular, interpupillary distance 50–75 mm (Light distribution 100:0)
- Objectives: 4×/10×/20x/40×/100×
- Mechanical table with space for 2 samples, 175 mm × 145 mm (w x d), Travel: 78 mm × 55 mm
- Table with coaxial coarse and fine focus knobs on both sides
- Optical system: Infinity optical system
- Tubus can be rotated 360°
- Diopter adjustment: Both Sides
- Condenser: 1,25 Abbe (adjustable height and adjustable diaphragm)
- Objective quality: Infinity Plan
- Quintuple nosepiece
- Tube inclination: 30°
| Manufacturer reference | OBN 148 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 530 mm × 220 mm × 490 mm (b x d x h) |
| Weight | 23 kg |
| Reference | A39455 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity Plan |
| Condenser | 1,25 Abbe condenser |
| Illumination | Halogen + 100 W Epi Fluorescence (B/G/UV/V) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Colour filters | Blue |
| Stage | Mechanical |
| Objectives | 4x/10x/20x/40x/100x |
No price available or do you need more info for this product? Request your info with the form below.
