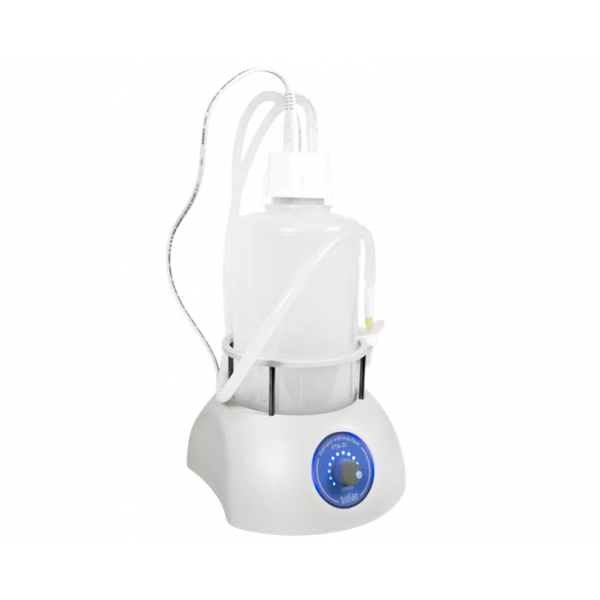

FTA-2i Aspirator with Trap flask

Reference
A37179
Sales Unit
Piece

This aspirator with trap flask FTA-2i is designed for aspiration or removal of alcohol, buffer and liquid from reaction vessels, for example during DNA/RNA purification or other macromolecule reprecipitation techniques. The device can be applied for routine applications of cell washing from culture medium and resuspension in buffer.

Login for Price
  • Vacuum: -200 to -800 mbar (adjustable)
  • Aspiration speed: up to 10l/min (air)
  • Trap flask: 2 l, polypropylene (autoclavable)
  • Liquid level sensor type: invasive
  • Overflow protection: motor stops, light and sound
  • Dimensions with trap: 185 mm x 290 mm x 390 mm (w x d x h)
  • Weight with trap flask: 1,85 kg
  • Input current/power consumption: 12 V, 1 A / 10,8 W
  • External power supply: input AC 100-240V 50/60 Hz Output DC 12 V
  • Operation: aspirator operation principle is based on creating negative pressure in trapping glask using built-in microcompressor. The collecting tip is connected with polyethylene tube to the trapping flask. Liquid is removed from the reaction vessel when the collecting tip is in contact with the solution
  • A tube holder-organiser is conveniently located at FTA-2i right hand side. It accommodates two 1,5 - 2 ml tube slots (for example for hydrochloric acid solution and distillate) necessary for collecting tip washing and storing, so that a tip can be re-used
  • FTA-2i is equipped with a level sensor that detects excess liquid with consequential prevention of the overflow by automatically switching off the pump with a sounding alarm indication
  • The device comes, as standard, with vacuum regulation control knob that allows to smoothly select a preferable aspiration speed
  • Additionally, an autoclavable hand operator with a pressure sensative button which controls the aspiration speed can be purchased for a more comfortable usability (A38446)
  • Filtration: hydrophobic microbiologic filter 2200/02 eliminates risk of contamination from the trap flask by bacteria, viruses and infected particles
More Information
Brand Biosan
UNSPSC code 42271907
Manufacturer reference BS-040120-A02
ISO code PCE
eclass 32012303
Sales Unit Piece
Overall dimensions 185 mm x 290 mm x 390 mm
Weight 1,85 kg
Reference A37179
