2 Mag Mixdrive 6 Basic with external control

Reference
A00001
Sales Unit
Piece

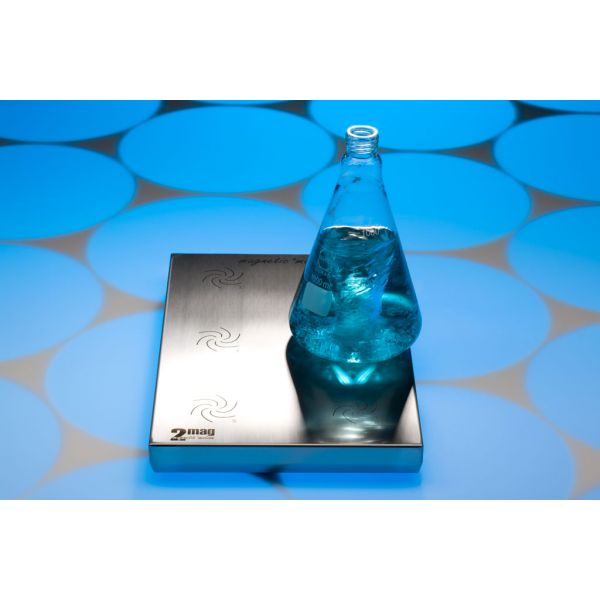

Ultra flat, wear-free magnetic stirrer with 6 stirring positions, suitable for 6 x 1,000 ml Erlenmeyer flasks.

Login for Price

Ultra flat, wear-free magnetic stirrer with 6 stirring positions, suitable for 6 x 1,000 ml Erlenmeyer flasks.
6 (2x3) stirring positions, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for powerful mixing of solutions, 100% synchronized speeds, jerk-free stirring even at low speeds.
Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust- and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2 incubators and ovens.
Basic-version up to +50 °C, individual dimensions on request.
3 years warranty on material- and manufacturing, developed and made in Germany.
Please order control unit MIXcontrol separately!

Stirring points: 6.
Stirring point distance: 130 mm.
Stirring volume/point: 3,000 ml.
Stirring power (max.): 40 W.
Material housing: Stainless-steel.
Material sealing: Silicone.
Permitted operation conditions (air): -10 up to +50°C.
Permitted operation conditions (water): +50°C in water submersed.
Measurement (WxDxH): 245 x 375 x 38 mm.
Weight: approx. 8.9 kg.
Permitted storage conditions: -40°C up to +70°C, 10 – 95%, 500 - 1060 hPa.
Protection category: IP 68.
Operating voltage: 48 VDC.

More Information
Iso Code PCE
UNSPSC code 41103806
Manufacturer reference 40006
ISO code PCE
eclass 32010000
leadtime 12
Control External control unit
Weight 8,9 kg
Speed/frequency 100-2000 rpm
Reference A00001
Overall dimensions 245x375x38 mm(BxDxH)
Warranty 3 years
With display No
Power supply 48 VDC
Sales Unit Piece
Max. volume 1-3000 ml
With heating function No
# stirring points 6
