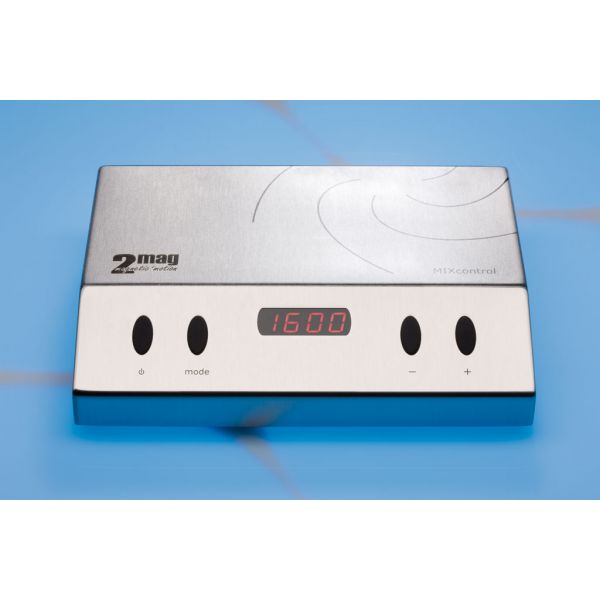

2 Mag MIXcontrol 20 RS232
Universal control unit with interface RS232 for the connection of one stirring drive MIXdrive, universal 20 watts stirring power, wide speed range from 100 up to 1,600 rpm.
Compatible with:
MIXdrive 1
MIXdrive eco (only in combination with distriBOX 4)
MIXdrive 1 XS (only in combination with distriBOX 4)
MIXdrive 6
MIXdrive 15
MIXdrive 60
Universal control unit with interface RS232 for the connection of one stirring drive MIXdrive, universal 20 watts stirring power, wide speed range from 100 up to 1,600 rpm, jerk-free stirring also at low speeds, 4-step power setting (25/50/75/100%).
Clear digital display for speed- and power settings, SoftStart for reliable catching/centering and safe accelerating of the stirring bar, QuickSet for quick setting of start- and maximum speed, automatic memory function to save the last settings, resistant stainless steel housing, easy to clean.
3 years warranty on material- and manufacturing, developed and made in Germany.
Speed range: 100 – 1,600 rpm.
Stirring power: 20W.
Stirring power steps: 4-step (25/50/75/100%).
Voltage output: 48 V.
Housing material: Stainless-steel.
Measurements (WxDxH): 200 x 155 x 38 mm.
Weight: ca. 1.4 kg.
Permitted operation conditions: 0 up to +40 °C (at 80% humidity).
Permitted storage conditions: -40 °C up to +70 °C, 10 – 95 %, 500 - 1060 hPa.
Protection category: IP 20.
Electrical data: 100-240 V / 50-60 Hz / 1.5 A.
Iso Code | PCE |
---|---|
Manufacturer reference | 90210 |
UNSPSC code | 41103806 |
ISO code | PCE |
eclass | 32010000 |
leadtime | 12 |
Brand | 2 Mag |
Speed/frequency | 100-1600 rpm |
Note | MIXdrive 1/1 eco/1 XS/6/15/60 |
Sales Unit | Piece |
Power supply | 230 V |
Overall dimensions | 200x155x38 mm(BxDxH) |
With display | Yes |
Warranty | 3 years |
Reference | A27786 |
Weight | 1,4 kg |
Control | External control unit |
With heating function | No |
