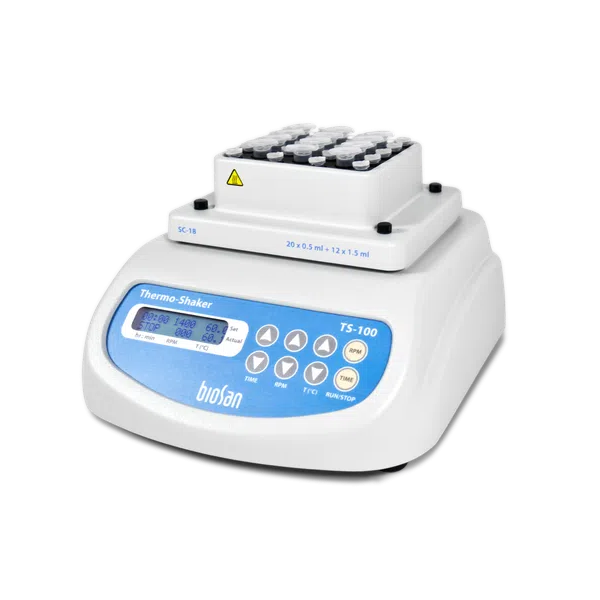

Biosan TS-100 Thermo-Shaker for microtubes (without blocks)
Reference
A04660
Sales Unit
Piece
This TS-100 Thermo-Shaker for microtubes from Biosan provides intensive mixing and temperature control of samples in microtest tubes or PCR plates. It can be used for DNA analysis sample preparation, the extraction of proteins, polysaccharides, lipids and other cellular components.
Related Products
We found other products you might like!
- Temperature setting range: +25 °C - +100 °C
- Speed control range: 250 - 1400 rpm
- Digital time setting: 1 min - 96 hours (1 min increment)
- Orbit: 2 mm
- Display: LCD, 16 x 2 signs
- Maximum continuous operation time: 168 hours
- Temperature control range: 5 °C above ambient - +100 °C
- Temperature setting resolution: 0,1 °C
- Temperature stability: 0,1 °C
- Temperature accuracy at +37 °C: 0,5 °C
- Average heating speed from +25 °C to +100 °C: 4 °C/min
- Temperature uniformity over the block at +37 °C: 0,1 °C
- Temperature uniformity over the block at +100 °C: 0,2 °C
- Temperature calibration coefficient range: 0,936 - 1,063 (± 0,063)
- With timer sound signal
- Microprocessor controlled temperature, mixing speed and operation time
- Functions of heating (up to +100 °C) and mixing can be performed both simultaneously and independently
- The unit implements three devices in one: shaker, dry-block thermostat and thermo-shaker
- Quickly reaches the set mixing speed and maintains same amplitude of rotation around the block
- Stable maintenance of the temperature of a wide range over the entire surface of the block
- LCD display shows the set and actual temperature, speed and time
- Quiet engine operation, compact size, long service life
- Heating source is a printed heating board (12 V)
- Mixing is provided by movement of orbital type
- Applications: genetic analysis - in extraction of DNA, RNA, and further sample preparation; biochemical study of enzymatic reactions and processes; extraction of metabolites from cellular material
- Temperature calibration function enables the user to calibrate the unit approximately 6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers
- Overall dimensions: 220 mm x 240 mm x 90 mm
- Weight: 3,7 kg
- Input current/power consumption: 12 V, 3,5 A / 42 W
- External power supply: input AC 100-240 V; 50/60 Hz; Output DC 12 V
| Iso Code | PCE |
|---|---|
| Brand | Biosan |
| UNSPSC code | 41103811 |
| Manufacturer reference | BS-010120-AAI |
| ISO code | PCE |
| eclass | 32012608 |
| leadtime | 14 |
| Reference | A04660 |
| Weight | 4 kg |
| Warranty | 2 years |
| Sales Unit | Piece |
| Movement | Orbital |
| Overall dimensions | 205 mm x 230 mm x 130 mm |
| With display | Yes |
| T° Stability | ±0.1°C ,±0.2°C, ±0.4°C, ±0.5°C |
| Speed/frequency | 250–1400 rpm |
| Timer | Yes |
| Orbit diameter | 2 mm |
| Power supply | DC 12V, 4.16 A |
| Temperature | +25°C ... +100°C |
| Heating power | 40 W |
No price available or do you need more info for this product? Request your info with the form below.
