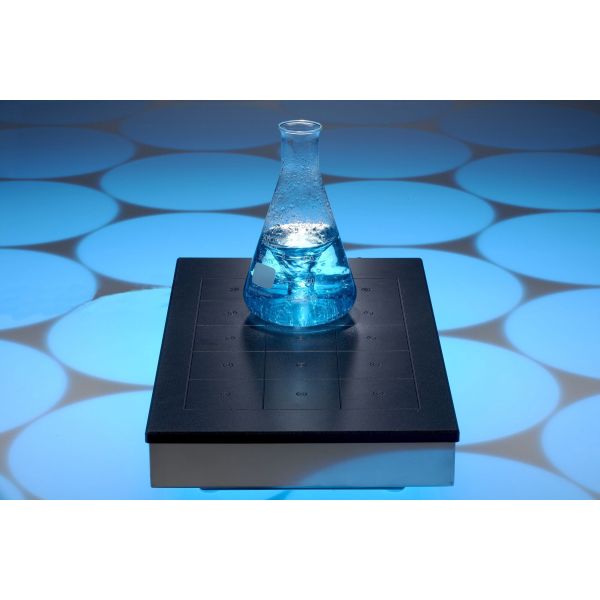

2 Mag STIRRING HOTPLATE 15 incl. heatMIXcontrol unit
Stirring-heating plate with 15 stirring positions, universally applicable for miscellaneous vessel sizes and shapes.
Stirring-heating plate with 15 stirring positions, universally applicable for miscellaneous vessel sizes and shapes, stirring point distance 65 mm, suitable for 15 x 250 ml glass beakers (tall form) incl. control unit heatMIXcontrol.
For mass screenings, incubating or concentrating of probes, evaporating of solvents, simple and easy system integration.
Powerful 15 stirring points, maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed.
Heating plate made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, fast heating-up by powerful integrated electrical heater, homogenous temperature distribution, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, independent over-temperature protection inside the plate.
Separate control unit heatMIXcontrol for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, independent and adjustable over-temperature limiter, stainless steel housing, compact and space-saving, connection for external P100 sensor, RS232 interface.
Stirring points: 15.
Stirring point distance: 65 mm.
Stirring volume/point: 1 – 1,000 ml.
Speed range: 100 – 2,000 rpm.
Stirring power (max.): 40W.
Power setting: 10-step (4 - 40W).
Max. temperature: up to +200 °C.
Material plate: aluminum (PTFE-coated).
Material housing: Stainless-steel.
Material sealing: Silicone.
Measurements (WxDxH): 250 x 430 x 75 mm.
Weight: approx. 15 kg.
Permitted operation conditions: -10 up to +40 °C (at 80% humidity).
Permitted storage conditions.: -40 °C up to +70 °C, 10 – 95 %, 500 - 1060 hPa.
Protection category: IP 20.
Electrical data: 230 volts / 1200W
Iso Code | PCE |
---|---|
Manufacturer reference | 66315 |
UNSPSC code | 41103806 |
ISO code | PCE |
eclass | 32010000 |
leadtime | 12 |
Brand | 2 Mag |
Speed/frequency | 100-2000 rpm |
Sales Unit | Piece |
Power supply | 230 V |
Overall dimensions | 250x430x75 mm(BxDxH) |
With display | No |
Warranty | 3 years |
Reference | A25865 |
Weight | 15 kg |
# stirring points | 15 |
Temperature | Max. 200°C |
Max. volume | 1-1000 ml |
Control | External control unit |
With heating function | Yes |
Heating power | 1200 W |
