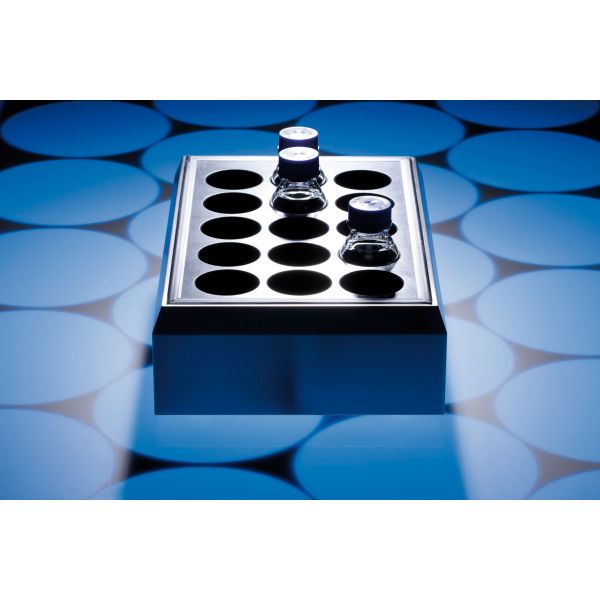

2 Mag STIRRING DRYBATH 15-250 incl. heatMIXcontrol unit
Stirring-heating block combination with 15 stirring positions, 15 bore holes, ø 71.5 mm, depth 78 mm, distance 84 mm, suitable for 250 ml lab-flasks. incl. control unit heatMIXcontrol.
Stirring-heating block combination with 15 stirring positions, 15 bore holes, ø 71.5 mm, depth 78 mm, distance 84 mm, suitable for 250 ml lab-flasks. incl. control unit heatMIXcontrol.
For viscosity measurements, R&D, combinatorial chemistry, biological applications, testing the solution behaviour of synthetic materials, quality control in food, chemical and waste water technology, simple and easy system integration.
Maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer, clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar, QuickSet for quick setting of start- and maximum speed.
Massive heating block made of resistant aluminium alloy, PTFE-coated for an increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200 °C, PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for a homogenous temperature distribution and protection against accidental contact, independent over-temperature protection inside the plate.
Separate control unit heatMIXcontrol for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, independent and adjustable over-temperature limiter, stainless steel housing, compact and space-saving, connection for external P100 sensor, RS232 interface.
Stirring points: 15.
Stirring point distance: 84 mm.
Stirring volume/point: 15 x 250ml.
Bore hole (diam./depth): 71.5 / 78 mm.
Speed range: 100 – 2,000 rpm.
Stirring power (max.): 40W.
Power setting: 10-step (4 - 40W).
Max. temperature: up to +200 °C.
Material block aluminum: (PTFE-coated).
Material housing: Stainless-steel.
Material sealing: Silicone.
Measurements (WxDxH): 335x515x150mm.
Weight approx. 31 kg.
Permitted operation conditions: -10 up to +40 °C (at 80% humidity).
Permitted storage conditions: -40 °C up to +70 °C, 10 – 95 %, 500 - 1060 hPa.
Protection category: IP 20.
Electrical data: 230V / 1200W.
Iso Code | PCE |
---|---|
Manufacturer reference | 63250 |
UNSPSC code | 41103806 |
ISO code | PCE |
eclass | 32010000 |
leadtime | 12 |
Brand | 2 Mag |
Speed/frequency | 100-2000 rpm |
Sales Unit | Piece |
Power supply | 230 V |
Overall dimensions | 335x515x150 mm(BxDxH) |
With display | No |
Warranty | 3 years |
Reference | A27749 |
Weight | 31 kg |
# stirring points | 15 |
Max. volume | 1-400 ml |
Control | External control unit |
With heating function | Yes |
Heating power | 1000W |
No price available or do you need more info for this product? Request your info with the form below.
