Special Counting chambers ( V-slash chambers / Howard / McMaster / Sedgewick Rafter )
The counting chamber consists of a thick glass microscope slide with a rectangular indentation that creates a chamber. This chamber is engraved with a laser-etched grid of perpendicular lines. The device is carefully crafted so that the area bounded by the lines is known, and the depth of the chamber is also known. It is therefore possible to count the number of cells or particles in a specific volume of fluid, and thereby calculate the concentration of cells in the fluid overall.

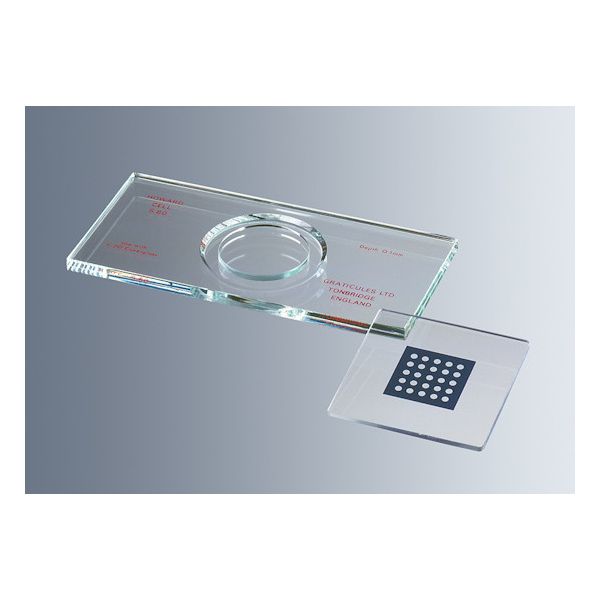

Counting chambers Howard with 2 counting lines :
|
Counting chambers Howard without counting lines :
|
|
Counting chambers McMaster with 2 grids
suitable for solid media for counting worm eggs
dimensions: approx. 75 x 32 mm
the cover glass with 2 counting grids approx. 10 x 10 mm (divided into 10 parts) on 3 supports affixed
distance between bottom plate and cover glass: approx. 1.5 mm
Counting chambers McMaster with 3 grids
for counting worm eggs
suitable for liquid media
dimensions: approx. 127 x 26 mm
depth: approx. 1.5 mm
separate cover glass with 3 counting grids approx. 10 x 10 mm (divided into 10 parts)
with 1 pair of clamps to fix the cover glass
ground edges and rounded corners
Counting chambers Sedgewick Rafter :
Counting chambers acc. to Sedgewick Rafter are intended for counting of particles and microorganisms in water or other transparent liquids.
- the cell of 50 x 20 x 1 mm (= 1 cm³) is ruled in a 1 mm grid subdividing 1 ml in 1000 μl
- supplied with cover glass approx. 60 x 30 x 1 mm
Counting chambers with V-slash :
Counting chambers with V-slash at the exterior sides of the chamber bottom offer various advantages:
- the V-slash facilitates the feeding of the capillary gap between chamber bottom and haemacytometer cover glass
- the risk of overflow is reduced
V-slash Neubauer Improved is offered by Marienfeld, both dark line and bright line versions are available .
