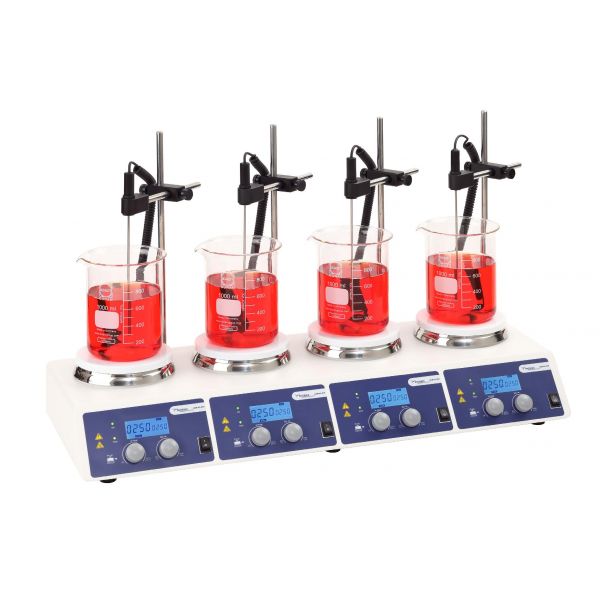

Phoenix RSM-03-4KH magnetic stirrer

Reference

A43106

Sales Unit

1 Piece

The 4-Position magnetic stirrer RSM-03-4KH from Phoenix can be widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals etc. The device is well suited for the mixing of several chemicals, laboratory and pharmaceutical materials at the same time.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Each stirring point can be controlled separately
LCD displays show the current temperatures or speeds
PID controller ensures precise and even heating process, max. temperature up to 340° C
Maintenance-free brushless DC motor
External temperature sensor (PT1000) with an accuracy of 1 °C
Overheating protection Temperature at 420 °C
Stainless steel worktop with ceramic coating provides good chemical resistant performance
Stands and temperature probes are included in the delivery
2 years warranty
Power with heating: 4 x 515 W
Power without heating: 4 x 15 W
4 stirring points
Distance between stirring points: 170 mm
Maximum stirring volume: 4 x 3 l
Maximum length of stirring bar: 40 mm
Motor power: 4 x 1,8 W
Plate dimension ø: 135 mm
Heating power: 4 x 500 W
Temperature range: RT-340°C, 1°C steps
Safety temperature: 420 °C
Ambient temperature: 5 - 40 °C
Relative humidity: 80%
Safety class according to DIN 60529: IP 21

More Information

More Information
Manufacturer reference	RSM-03-4KH
UNSPSC code	41103806
ISO code	PCE
eclass	32100102
Brand	Phoenix Instruments
Speed/frequency	200 - 1.500 rpm / 20 rpm
Sales Unit	1 Piece
Power supply	200-240 V / 50 Hz
Timer	No
Overall dimensions	700 mm x 270 mm x 130 mm
With display	Yes
Warranty	2 years
Reference	A43106
Weight	9,5 kg
# stirring points	4
Working area	Ø135 mm
Temperature	-> 340°C
Max. volume	4 x 3 l
Stand	Incl.
Control	Integrated control
With heating function	Yes
Heating power	4 x 500 W
