Ohaus Overhead Stirrer e-A51ST100
Reference
A41745
Sales Unit
Piece

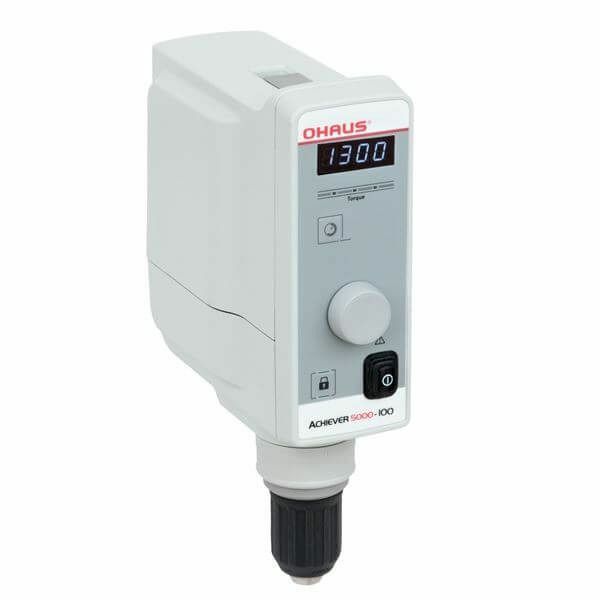

OHAUS Achiever 5000 Overhead Stirrers are designed for powerful, precise stirring, safety and simplicity in all applications. The sealed design has an IP54 rating and ensures safe mixing performance even in the most demanding applications. Select from five models with up to 200 Ncm torque and up to 100 L volume capacity.
Related Products
- The keyless chuck and software-controlled speed ramping provide easy setup and safe stirring to protect the sample and user
- Bright LED digital display for speed, real-time torque tendency LED indicator bar, and integrated timer
- Stirring from 6 rpm to 2000 rpm with speed accuracy of 1 rpm and maximum torque from 20 Ncm to 200 Ncm, depending on model. Stable torque at any speed, and volume capacity ranging from 25L to 100L
- Compact design for easy handling, simple knob control, lock button to prevent unintentional setting changes, and full protection for overload, overtemperature and overcurrent conditions
- Sealed aluminum housing with IP54 ingress protection rating. Keyless Chuck for simple, one-hand operation, and brushless motor for quiet operation and main power switch
- Applications: Stirring, dissolving, dispersion, emulsification and homogenization for the following the industries: food and beverage, cosmetics, paint/coatings, pharmaceutical, chemical, glue/adhesive, plastics/polymer and cement/construction. Used for pilot scale in manufacturing
- Speed range: 30 rpm – 1300 rpm
- Capacity: 100 L
- Sample viscosity (mPa s): maximum 70,000
- Torque (maximum): 100 Ncm
- Chuck range (diameter): 1-13mm
- Shaft pass-through (Diameter): up to 8,5 mm
- Digital
- LED display
- Function: stirring
- IP rating: IP 54
- Power consumption: 190 W
- Safety Certification: cNemkous
- Speed Accuracy: ±1 rpm
- Working environment: 5°C – 40°C, 80% RH, non-condensing
| Manufacturer reference | 30586766 |
|---|---|
| UNSPSC code | 41103800 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 7 |
| Brand | Ohaus |
| Speed/frequency | 30 rpm – 1300 rpm |
| Sales Unit | Piece |
| Power supply | 115 / 230 VAC |
| Overall dimensions | 285 mm x 235 mm x 90 mm (h x l x b) |
| With display | Yes |
| Weight | 4,1 kg |
| With heating function | No |
No price available or do you need more info for this product? Request your info with the form below.
