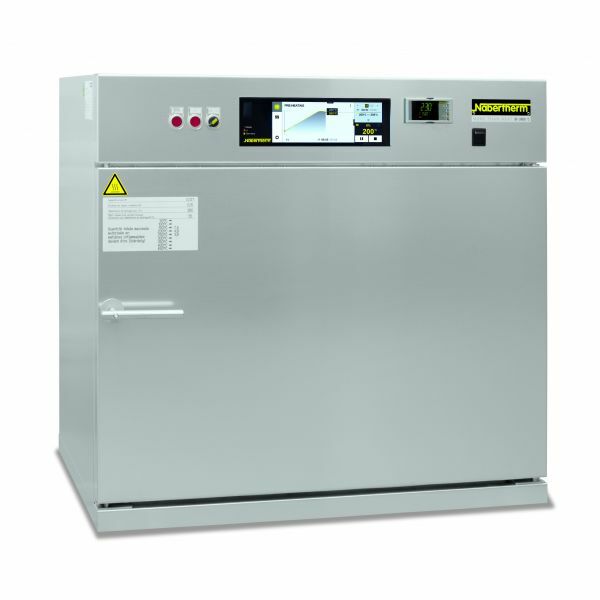

Nabertherm TR 120, 120L, 300°C - Oven with forced circulation

- Tmax 300 °C

- Working temperature range: + 20 °C above room temperature up to 300 °C

- Ovens TR 30 - TR 420 designed as tabletop models

- Ovens TR 450 - TR 1050 designed as floor standing models

- Horizontal forced air circulation results in temperature uniformity according to DIN 17052-1 better than +/− 5 °C in the empty oven (with closed exhaust air flap) see page 71

- Stainless steel furnace housing, material no. 1.4016 (DIN)

- Stainless steel chamber, alloy 304 (AISI)/(DIN material no. 1.4301), rust resistant and easy to clean

- Charging in multiple layers possible using removeable grids (number of

removeable grids included, see table to the right)

- Large, wide-opening swing door, hinged on the right with quick release for models TR 30 - TR 240 and TR 450

- Double swing door with quick release for models TR 420, TR 800 and TR 1050

- Ovens TR 800 and TR 1050 equipped with transport castors

- Infinitely adjustable exhaust at the rear wall with operation from the front

- PID microprocessor control with self-diagnosis system

- Models TR .. LS: Safety technology according to EN 1539 for charges containing liquid solvents, achievable temperature uniformity +/− 8 °C according to DIN 17052-1 in the empty oven (with closed exhaust air flap) see page 71

- Controller R7 (resp. C550 for TR ..LS), alternative programmable controllers see page 78
