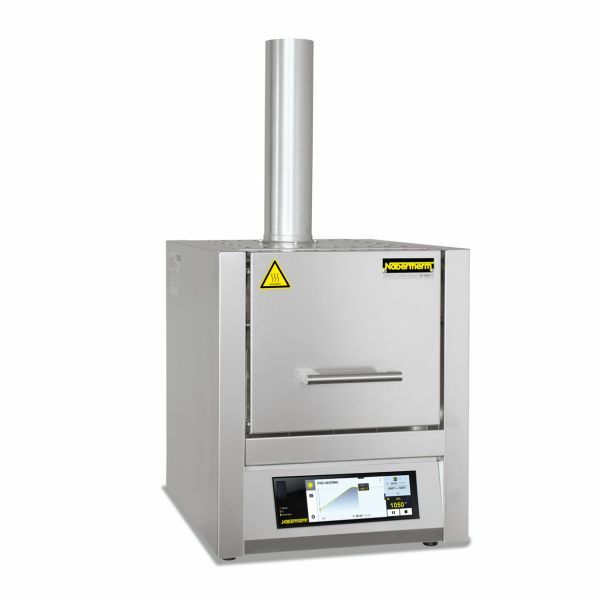

Nabertherm L 24/11 BO, 24L, 1100°C - Ashing furnace with integrated exhaust gas cleaning
The ashing furnace L ../11 BO is specially designed for processes in which larger sample quantities have to be incinerated. Fields of application are e.g.
the ashing of food, thermal cleaning of injection molding tools or the determination of annealing loss. Another application is the debinding of ceramic products, e.g. after additive production.
- Tmax 600 °C for the incineration process
- Tmax 1100 °C for the subsequent process
- Three-side heating (both sides and bottom)
- Ceramic heating plates with embedded heating wire
- Steel collecting pan protects the bottom insulation
- Spring-assisted closing of the furnace door (flap door) with mechanical locking against unintentional opening
- Thermal/catalytic post combustion, integrated in the exhaust channel, up to 600 °C in function
- Temperature control of post combustion can be set up to 850 °C
- Monitored exhaust air
- Inlet-air preheated through the bottom heating plate
- Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the oven and load
- Controller C550 (10 programs with each 20 segments), alternative controllers see page 78
| Manufacturer reference | L 24/11 BO/C550 |
|---|---|
| UNSPSC code | 41104400 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 35 |
| Brand | Nabertherm |
| Power supply | 400V 3NPE |
| Sales Unit | 1 Piece |
| Weight | 90 kg |
| Timer | Yes |
| Heating power | 9 kW |
| Temperature | 1100°C |
| Int. Dimensions | 280x340x250mm (WxDxH) |
| Volume | 24 L |
| Ext. Dimensions | 490x675x800mm (WxDxH) |
