2 Mag MIXcontrol XL

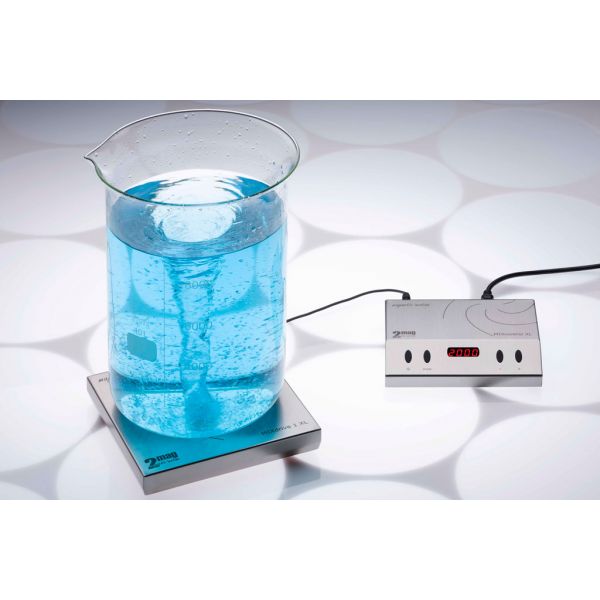

Powerful control unit for MIXdrive 1 XL stirring drives with 20 watts stirring power and mixWATCH stirring bar monitoring.
Powerful control unit for MIXdrive 1 XL stirring drives with 20 watts stirring power and mixWATCH stirring bar monitoring.
SoftStart-function for reliable catching/centering and safe accelerating of the stirring bar at different volumes and viscosities, adjustable interval times for automated restart of the stirrer after max. 240 seconds.
20 Watt stirring power, speed range from 60 up to 2.000 rpm, power setting in 4 steps (25/50/75/100%).
Digital display for speed- and interval setting, QuickSet for quick setting of start-and maximum speed, QuickStop-function against after-run and glass breakage, storage of last function status when turning off.
Interfaces (0-10V, 4-20 mA, RS232, USB, Ethernet), customized software adaption and stirring bar monitoring on request.
Stirring power (max.): 20W.
Speed range: 60 – 2,000 rpm.
Housing material: Stainless steel.
Permitted operation conditions: 0°C to +40°C (at 80% humidity).
Operating voltage:100-240V / 50-60Hz / 1.5A.
Dimensions (WxDxH): 200 x 155 x 48 mm.
Protection category: IP20.
Weight (gross): aprrox. 1.8 kg.
| Iso Code | PCE |
|---|---|
| Manufacturer reference | 90600 |
| UNSPSC code | 41103806 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 12 |
| Brand | 2 Mag |
| Speed/frequency | 60-2000 rpm |
| Sales Unit | Piece |
| Power supply | 230V |
| Overall dimensions | 200x175x48 mm(BxDxH) |
| With display | Yes |
| Warranty | 3 years |
| Reference | A27803 |
| Weight | 1,8 kg |
| Control | External control unit |
| With heating function | No |
