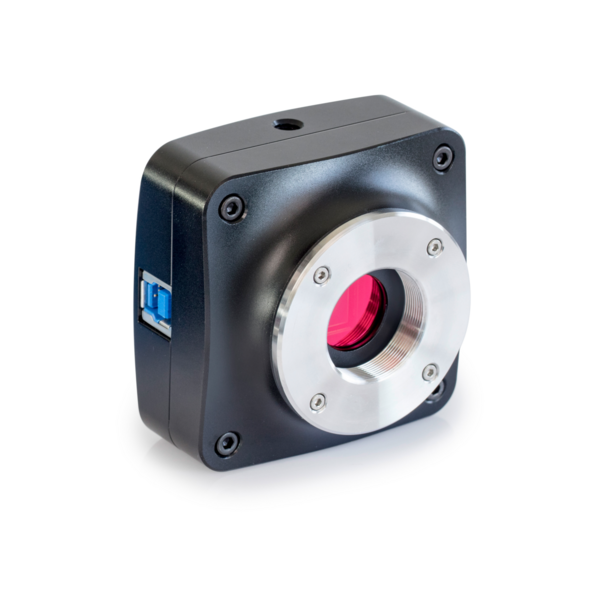

Microscope camera 20 MP Sony CMOS USB 3.0 - ODC 84
Reference
A58974
Sales Unit
1 Piece
The ODC‑84 microscope camera delivers crisp, detailed imaging with its high‑performance 20‑megapixel Sony CMOS sensor. The integrated USB 3.0 interface enables fast live streaming and seamless transfer to VIS 2.0 PRO or LITE software.
Perfect for measurement, documentation, archiving and image processing.
- Resolution: 20 MP
- Sensor: Sony CMOS, 1"
- Pixel size: 2.4 × 2.4 µm
- Color depth: Color
- Frame rates:
- 15 FPS @ 5440×3648
- 50 FPS @ 2736×1824
- 60 FPS @ 1824×1216
- Exposure time: 0.1–15000 ms
- Interface: USB 3.0 (power + data)
- Software: VIS 2.0 PRO / LITE
- Included: 2 m USB cable, eyepiece adapters, calibration micrometer
| Manufacturer reference | ODC 841 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 68×68×46 mm |
| Reference | A58974 |
| Sales Unit | 1 Piece |
No price available or do you need more info for this product? Request your info with the form below.
