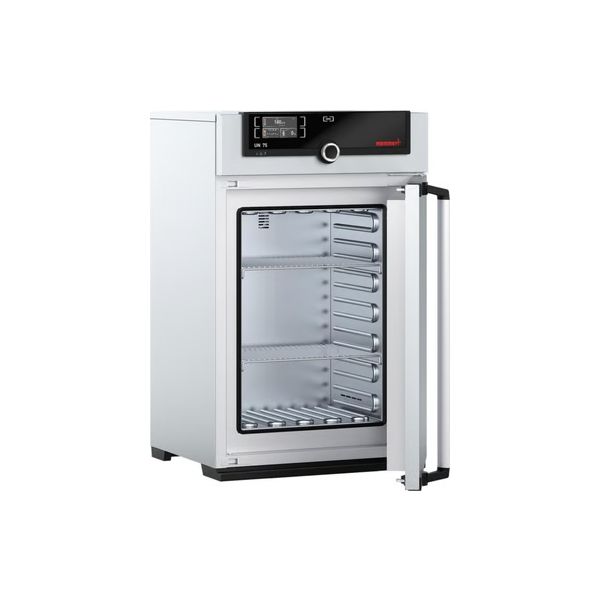

Memmert UN75 universal oven, natural convection, 74 L

Reference
A42346
Sales Unit
1 Piece
Memmert UN75 universal oven with natural convection, a 74 L interior and a setting range from 20°C to 300°C, operated via the ControlCOCKPIT SingleDISPLAY.
Login for Price
We found other products you might like!
  1. Memmert UN30 universal oven, natural convection, 32 L Ref. A33623
    Login for Price More details
  2. Memmert UF260 universal oven, forced air circulation, 256 L Ref. A42437
    Login for Price More details
  3. Memmert UN260 universal oven, natural convection, 256 L Ref. A65636
    Login for Price More details

The Memmert UN75 is a universal oven with natural convection and a 74 L interior. It controls the temperature from 20°C to 300°C and is designed for drying, heating, ageing, burn-in, testing and curing. It is operated via the ControlCOCKPIT with SingleDISPLAY.

Applications

  • Drying and heating
  • Ageing and burn-in, e.g. of electronic components
  • Curing, e.g. of plastic resin
  • Tempering and testing of materials and components, including quality assurance

Features

  • ControlCOCKPIT SingleDISPLAY: adaptive digital PID microprocessor controller with a TFT colour display
  • Pt100 sensor, DIN class A, in 4-wire circuit
  • Digital countdown timer with target time setting, from 1 minute to 99 days; SetpointWAIT: the process time starts only when the set temperature is reached
  • Calibration at three freely selectable temperatures
  • Natural convection
  • Admixture of preheated fresh air via an electronically adjustable air flap; exhaust connection with restrictor flap
  • Easy-to-clean stainless steel interior, reinforced by deep-drawn ribbing, with integrated and protected large-area heating on four sides
  • Adjustable electronic overtemperature monitor and mechanical temperature limiter TB (protection class 1 to DIN 12880), switching off the heating approx. 20°C above the nominal temperature
  • Integrated data logger, read out via the Ethernet interface with AtmoCONTROL software (trial version available for download; licence available as an accessory)
  • Programme retained in the event of a power failure
  • Fully insulated stainless steel door with 2-point locking
  • Textured stainless steel housing, rear in zinc-plated steel

Technical data

  • Temperature setting range: 20°C → 300°C
  • Working temperature range: 5°C above ambient to 300°C
  • Setting accuracy: 0.1°C up to 99.9°C; 0.5°C from 100°C
  • Volume: 74 L
  • Internal dimensions: 400 × 560 × 330 mm (W × H × D)
  • Max. number of grids: 6
  • Max. load of interior: 120 kg
  • Max. load per grid: 20 kg
  • External dimensions: 585 × 944 × 514 mm (W × H × D; depth + 56 mm door handle)
  • Weight: approx. 66 kg
  • Voltage and power: 230 V, 50/60 Hz, approx. 2500 W

Included in delivery

  • 2 electropolished stainless steel grids
  • Works calibration certificate at 160°C

Manufacturer’s article number: UN75

More Information
Iso Code PCE
ISO code PCE
leadtime 25
UNSPSC code 41103400
Manufacturer reference UN75
eclass 34100103
Brand Memmert
Sales Unit 1 Piece
Temperature 20°C → 300°C
Warranty 3 years
Weight 66 kg
Power supply 230 V, 50/60 Hz
Reference A42346
Ext. Dimensions 585 × 944 × 514 mm
Ventilation type Natural convection
Int. Dimensions 400 × 560 × 330 mm
