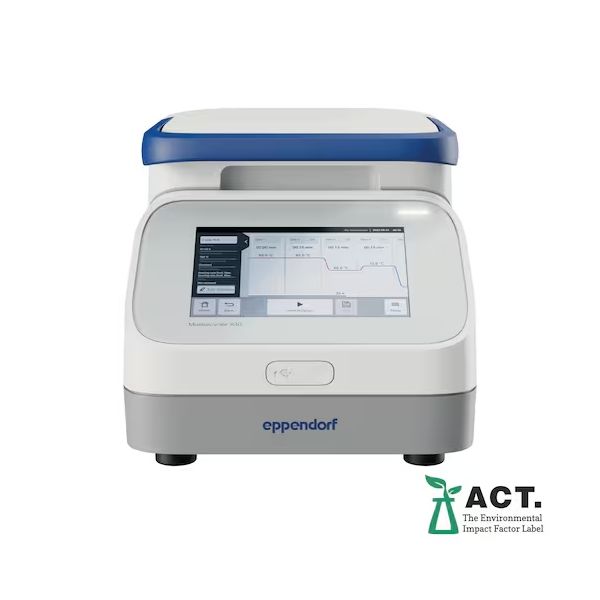

Mastercycler® X40 - PCR Thermocycler

Reference

A47063

Sales Unit

1 Piece

The Eppendorf Mastercycler® X40 is a powerful, compact PCR thermocycler with a 12-column gradient block for optimal temperature optimisation. Thanks to its fast heating (3.3 °C/s), intuitive 7" touchscreen and SafeLid® technology, the X40 delivers reliable and reproducible results. With USB export and VisioNize® connectivity, the cycler is ready for digital lab management. Ideal for demanding applications in molecular biology research.

Suitable for 0.1/0.2 mL tubes, strips and 96-well PCR plates
12-column gradient for optimal PCR conditions
Heating rate up to 3.3 °C/s, cooling up to 1.5 °C/s
7" colour touchscreen and intuitive operation
SafeLid® for optimal sealing and evaporation protection
Digital connectivity via VisioNize® Lab Suite
Compact size: only 24.5 × 38.5 × 23 cm (WxDxH)
Low energy consumption (0.134 kWh per run)
Quiet operation (40.5 dB(A))

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Eppendorf Mastercycler® X40 is an advanced PCR thermocycler that combines precision, speed and ease of use in a compact design. Ideal for modern molecular biology laboratories. With a 12-column gradient block, fast heating (3.3 °C/s), SafeLid® technology and compatibility with all common PCR consumables, this cycler offers maximum flexibility and reproducible results.

Thanks to its intuitive 7" touchscreen interface, USB export and VisioNize® connectivity for real-time monitoring, the X40 is fully prepared for the digital lab environment.

Fast PCR optimization: Testing of 12 different denaturation/annealing temperatures in a single run with temperature gradient function
Compatible with many vessel formats: 0.1/0.2 mL tubes and tube strips, 96 well plates (low/high profile unskirted, high profile semi-skirted, low profile skirted); SafeLid adjusts to different vessel heights for optimized temperature transfer and evaporation protection
For more reproducible results: high block temperature homogeneity ±0.2 °C (20 – 72 °C) and control accuracy (±0.15 °C); constant 20 °C during warm-up phase of the heated lid reduces thermal load on samples and minimizes formation of non-specific products
Supports sustainability goals: ACT-certified, low noise level and energy consumption: 40.5 db(A) and 0.134 kWh (3-step PCR run); energy-saving mode
True control and remote monitoring: 7" touch interface e.g., with user management to set permissions to change settings or programs and detailed GLP- and audit supporting run documentation; remote monitoring and more with VisioNize® Lab Suite
Easy program transfer: Program migration feature supports import of programs from slower cyclers, ramp rates are automatically adjusted according to the entered desired runtime
Options and accessories: Dedicated service and maintenance plans e.g., IQ/OQ GxP or temperature verification with sensors calibrated according to ISO 9001 or ISO/IEC 17025, TVS-T6 block temperature verification system, broad selection of PCR consumables

More Information

More Information
Brand	Eppendorf
Manufacturer reference	6381000018
leadtime	14
ISO code	PCE
eclass	32010000
With display	Yes, with touchscreen
Overall dimensions	24,5 × 38,5 × 23 cm
Sales Unit	1 Piece
Power supply	100 – 240 V, 50 – 60 Hz
Reference	A47063
Weight	7.25 kg
