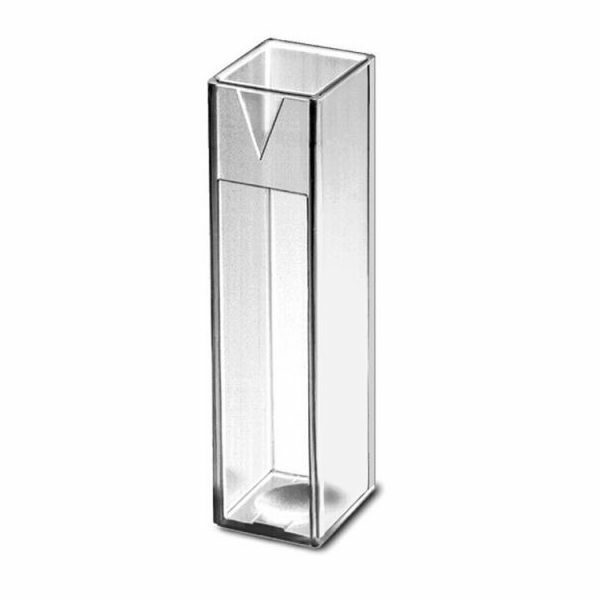

Macro cuvette PMMA - 10 mm light path

Reference

A03665

Sales Unit

100 pcs

This macro cuvette with light path of 10 mm from Brand is made from PMMA, has a minimum volume of 2,5 mm and a maximum volume of 4,5 mm.

Model: macro
Minimum volume: 2,5 ml
Maximum volume: 4,5 ml
Standerd 10 mm light path
Clear, clean optical path with indication of optical path orientation
Manufactured under controlled room conditions and packaged fully automatically, without human contact
Packed grouped by mold cavity number to ensure lowest variation of extinction coefficient

cuvette type	filling volume min.	filling volume max.	dim. window (w x h)	range of application	standard deviation in extinction units
UV-cuvette micro, z=8.5	70µl	850µl	2 x 3.5mm (min)	230 to 900 nm	240nm < 0.007 300nm < 0.005
UV-cuvette micro, z=15	70µl	550µl	2 x 3.5mm (min)	230 to 900 nm	240nm < 0.007 300nm < 0.005
UV-cuvette macro	2.5ml	4.5ml	10 x 35mm	230 to 900 nm	240nm < 0.007 300nm < 0.005
UV-cuvette semi-micro	1.5ml	3.0ml	4.5 x 23mm	230 to 900 nm	240nm < 0.007 300nm < 0.005
Macro cuvette PMMA	2.5ml	4.5ml	10 x 35mm	300 to 900 nm	320nm < 0.004
Semi-micro cuvette PMMA	1.5ml	3.0ml	4.5 x 23mm	300 to 900 nm	320nm < 0.004
Makro cuvette PS	2.5ml	4.5ml	10 x 35mm	340 to 900 nm	360nm < 0.005
Semi-micro cuvette PS	1.5ml	3.0ml	4.5 x 23mm	340 to 900 nm	360nm < 0.005
