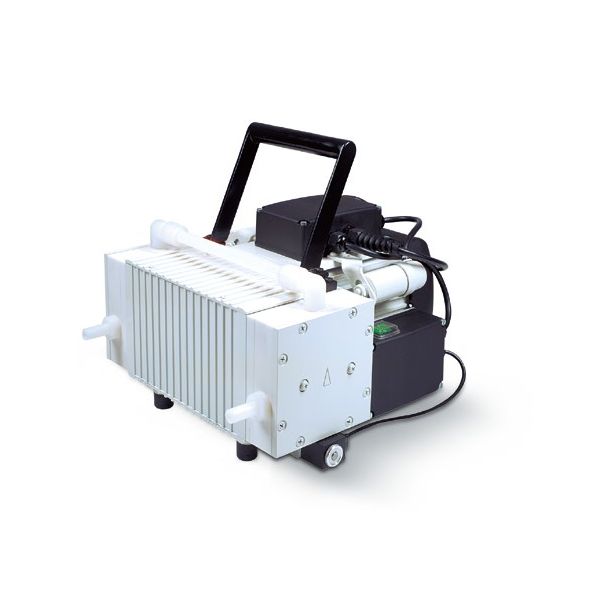

KNF N 860.3 FT.40.18 - Membrane vacuum pump
Reference
A30529
Sales Unit
1 Piece
Chemically resistant diaphragm vacuum pump featuring PTFE heads, PTFE-coated diaphragms and FFPM valves. An integrated self-drying system prevents the accumulation of condensates within the pump heads. Ideal for applications with exceedingly aggressive and wet vapors/gases.
Flow Rate (max.): 60 l/min
Ultimate Vacuum (max.): 4 mbar (abs.)
Clean, 100% oil-free operation
Corrosion-resistant PTFE/FFPM flowpath
Ideal for extremely aggressive/corrosive gases and vapors
Compact, quiet and reliable
| Iso Code | PCE |
|---|---|
| Brand | KNF |
| UNSPSC code | 41105100 |
| Manufacturer reference | 049625/049661 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 28 |
| Note | IP54 |
| Sales Unit | 1 Piece |
| Overall dimensions | 331 x 278 x 291 mm (LxHxB) |
| Weight | 14,8 kg |
| Reference | A30529 |
| Internal diameter connection(mm) | ID 12 |
| Pump head | PTFE |
No price available or do you need more info for this product? Request your info with the form below.
