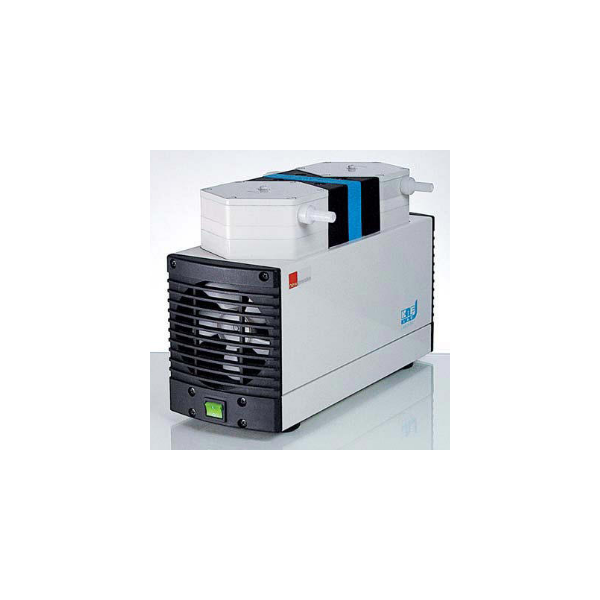

KNF N840.3FT.18 - Membrane vacuum pump
Reference
A30523
Sales Unit
Piece
KNF LABOPORT® Chemically-resistant Diaphragm Vavuum Pump.
- The chemically-resistant series N 840 and N 840.3 diaphragm pumps are single- and double-head,
dry-running devices used in a wide range of laboratory applications.
- They transfer and pump down without contamination.
- The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was
stress-optimized using the Finite Elements method. As a result, we were able to make the pumps
smaller while increasing the service life of the diaphragm.
Iso Code | PCE |
---|---|
Brand | KNF |
UNSPSC code | 41105100 |
Manufacturer reference | 309579/026365 |
ISO code | PCE |
eclass | 32010000 |
leadtime | 28 |
Note | IP44 |
Sales Unit | Piece |
Overall dimensions | 341 x 226 x 199 mm (LxHxB) |
Weight | 12,6 kg |
Reference | A30523 |
Type | Laboport / Chemisch bestendige membraanvacuümpompen |
Internal diameter connection(mm) | ID 10 |
Membrane | PTFE (polytetrafluoroethylene) |
No price available or do you need more info for this product? Request your info with the form below.
