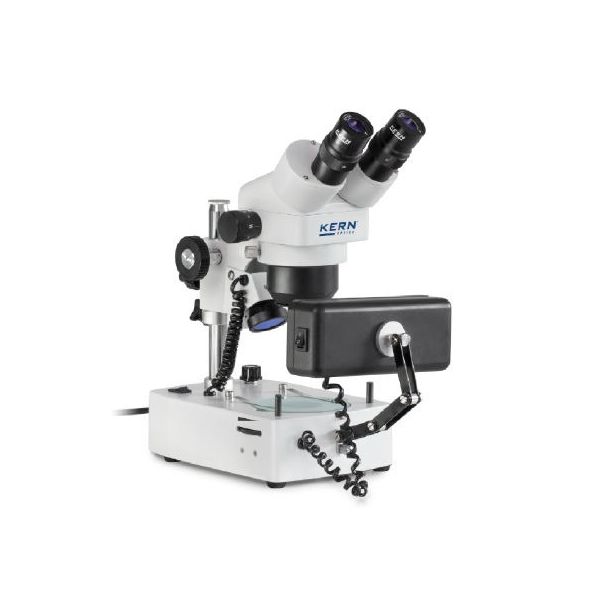

Kern OZG 493 stereo zoom microscope (gem) binocular
Reference
A39570
Sales Unit
Piece
The KERN OZG series has been specially developed for jewellers and mineral observations in the gem industry. Precious stones and gems can be checked and handled with this stereo zoom microscope. The OZG-493 is suitable for samples with focus on three-dimensional impression (depth, tickness), zoom for variable magnification, special stand for processing workpieces, e.g. gems, components, precious stones.
Related Products
- Applications: jewellers and gem industry
- Binocular, interpupillary distance (55–75 mm)
- Field of view: ∅ 26,7 – 5,6
- Objective zoom: 0,7× – 3,6×
- Optical system: Greenough optics
- Magnification ratio: 5,1:1
- Stage plate: frosted glass /∅ 95 mm & Black-white/∅ 95 mm
- Tube inclination: 45°
- Brightness adjustable
- Diopter adjustment: both-sided
- You have a choice of a strong halogen transmitted illumination unit as well as halogen reflected and transmitted illumination variants, each with an additional frontal illumination
- As well as very good optical characteristics, this model forms an ideal package with its dark field unit with object clamp which is included in the scope of delivery
- The Kern OZG 493 is fitted with a pole stand which has both integrated bright halogen units with incident and transmitted illumination, as well as additional front lighting
| Manufacturer reference | OZG 493 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 310 mm x 170 mm x 350 mm |
| Weight | 5,4 kg |
| Reference | A39570 |
| Sales Unit | Piece |
| Illumination | 10 W Halogen (incident), 10 W Halogen (transmitted), 10 W Fluorescence (front illumination) |
| Eyepiece | 2 x WF 10×/∅ 20 mm |
| Tube | Binocular (eye relief 55-75 mm) |
