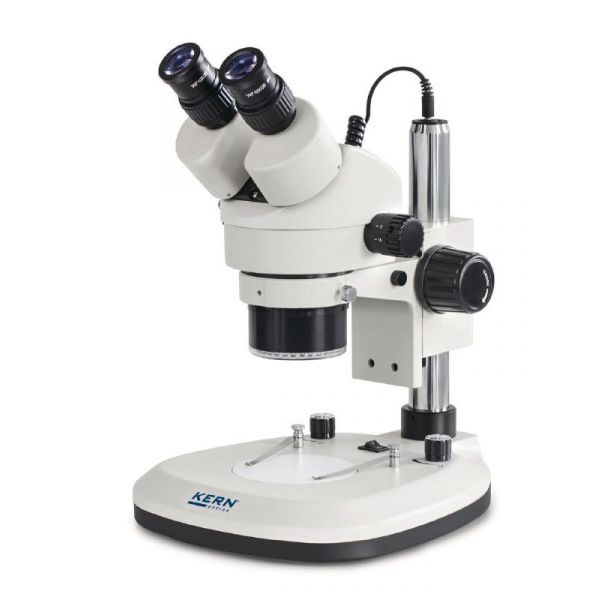

Kern OZL 463 stereo zoom microscope binocular
Reference
A39574
Sales Unit
Piece
The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price. The OZL-microscope is suitable for samples with focus on three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components.
Related Products
- Applications: in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control
- Binocular, interpupillary distance (55–75 mm)
- Field of view: ∅ 28,6 – 4,4 mm
- Objective zoom: 0,7× – 4,5×
- Optical system: Greenough optics
- Magnification ratio: 6, 4:1
- Stage plate: frosted glass /∅ 95 mm & Black-white/∅ 95 mm
- Tube inclination: 45°
- Light distribution: 50:50
- Brightness adjustable (separate)
- Diopter adjustment: both-sided
- The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample
- The zoom objective offers you continuous magnification from 7×–45×
- The pillar stand offers you the highest level of flexibility and the freedom to remove the microscope head and to integrate it into other modular systems, for example into a universal stand
| Manufacturer reference | OZL 463 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 300 mm x 240 mm x 420 mm (b x d x h) |
| Weight | 4 kg |
| Reference | A39574 |
| Sales Unit | Piece |
| Illumination | 3W LED (incident); 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Binocular (eye relief 55-75 mm) |
No price available or do you need more info for this product? Request your info with the form below.
