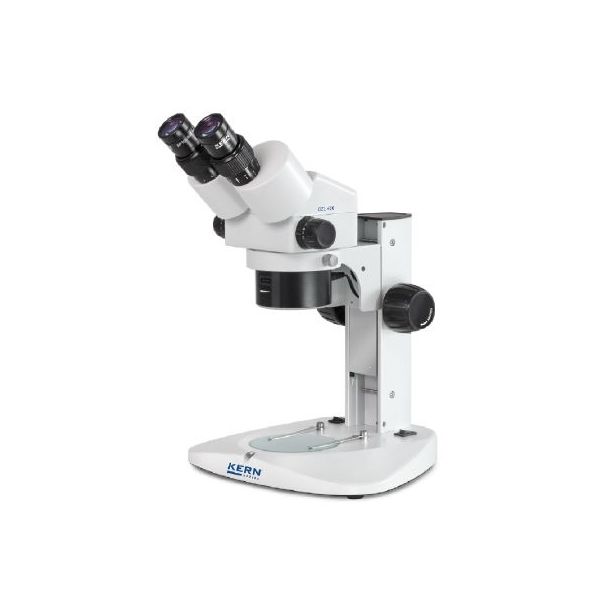

Kern OZL 456 stereo zoom microscope binocular

Reference
A39573
Sales Unit
Piece

The KERN OZL-456 stereo zoom microscope series will impress you with its excellent optical characteristics, easy operation and its integrated LED ring illumination unit. The OZL-456 is suitable for samples with focus on three-dimensional impression, zoom with variable magnification (depth, thickness), e.g. insects, seeds, circuit boards, components.

Login for Price
  • Applications: in vitro fertilisation, detection of parasites, zoology and botany, tissue preparation, section, quality control
  • Binocular, interpupillary distance (55–75 mm)
  • Field of view: ∅ 33 – 5 mm
  • Objective zoom: 0,75× – 5,0×
  • Magnification ratio: 6, 7:1
  • Stage plate: frosted glass /∅ 95 mm & Black-white/∅ 95 mm
  • Optical system: Greenough optics
  • Diopter adjustment: both-sided
  • Tube inclination: 45°
  • The highlight of the Kern OZL-456 is the strong, continuously dimmable, integrated LED ring illumination in the objective housing, which ensures uniform, shadow-free illumination. A LED transmitted light variant is also included
  • With its built-in, top-quality optics and powerful, integrated LED illumination unit, this model is a special all-rounder for all areas of application
  • The arm curved stand gives you a large working area as well as a precise adjustment mechanism
More Information
Manufacturer reference OZL 456
eclass 32010000
leadtime 5
Brand KERN
ISO code PCE
UNSPSC code 41111700
Overall dimensions 320 mm x 275 mm x 420 mm
Weight 4,6 kg
Reference A39573
Sales Unit Piece
Illumination 1 W LED (incident); 0,21 W LED (transmitted)
Eyepiece HSWF 10×/∅ 23 mm
Tube Binocular (eye relief 55-75 mm)
