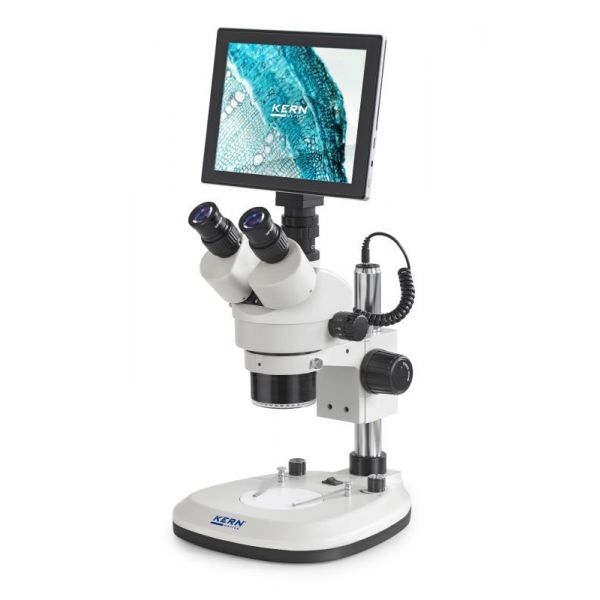

Kern OZL 466T241 stereo microscope digital set
Reference
A39558
Sales Unit
1 Piece
The products in the KERN OZL-46 series are stereo zoom microscopes, which will impress you with their quality, easy handling, flexibility as well as their stability and economical price. Now also available as a comprehensive solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 55-75 mm)
- Greenough optical system
- Objectives: 0,7× – 4,5×
- Field of view: ∅ 28,6 – 4,4
- Magnification ratio: 6,4:1
- Light distribution: 50:50
- Included camera: ODC 241
- Resolution camera: 5 MP
- Interface: Wifi, USB 2.0, HDMI, SD (15 - 30 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 45°
- Diopter adjustment: both-sided
- Illumination: 3W-LED (incident + transmitted)
- Brightness adjustable (separate)
- Stand: pillar
- The LED reflected and transmitted illumination included as standard guarantees the very best illumination of your sample
- The highlight of the OZL 466 is the strong, continuously dimmable integrated LED ring illumination in the objective housing which ensures uniform, shadow-free illumination. A LED transmitted light variant is also included
- The adapted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideal for training companies, workships as well as assembly and repair workstations, e.g. in the electronics industry
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OZL 466T241 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 300 mm × 240 mm × 420 mm |
| Weight | 5 kg |
| Reference | A39558 |
| Sales Unit | 1 Piece |
| Illumination | 3W LED (incident); 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 55-75 mm) |
