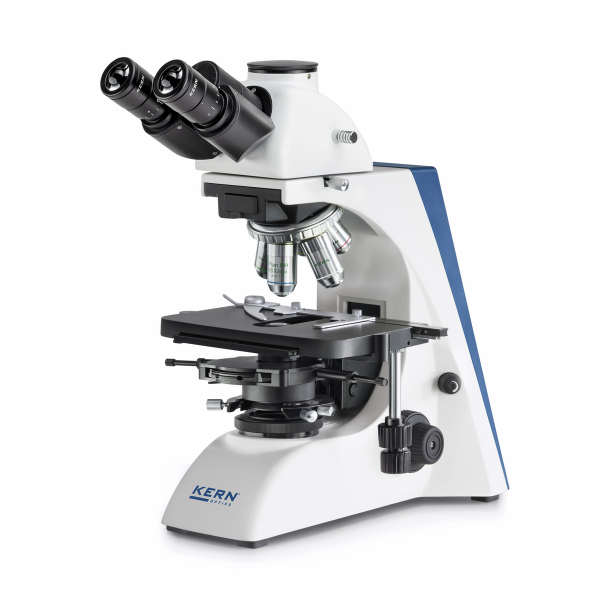

Kern OBN 159 phase contrast microscope
Reference
A45442
Sales Unit
1 Piece
The KERN OBN series stands out because of its unbeatable and consistenly high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user. The phase contrast microscope OBN 159 is suitable for translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue).
- Applications: haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, veterinary practices, water analysis, breweries, Inpatient facilities, Laboratory medical facilities, Health authorities, Training centres and Universities
- Trinocular, (eye relief 50-75 mm)
- Light distribution: 100:0
- Infinity optical system
- Objective quality: Infinity Plan (4×/0,10 W.D. 12,1 mm)
- Objectives: 4×/PH10×/PH20×/PH40×/PH100
- Quintuple nosepiece
- Mechanical stage with two slide holder: 175 mm x 145 mm (w x d), Travel: 78 mm x 55 mm
- Phase contrast unit: quintuple hole turret with 10×/20×/40×/100× Infinity-PH-Plan objectives (complete set); centering eyepiece
- Tube inclination: 30° (Siedentopf)
- Tube can be rotated 360°
- Diopter adjustment: both-sided
- Illumination: 3 W LED (transmitted)
- This phase-contrast microscope combines a professional quintuple condenser wheel, phase contrast condenser and Infinity Plan phase contrast objectives, which makes it a high-quality, fully-equipped microscope for all applications relating to this contrasting methods
- This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm
- The extremely large mechanical stage with ergonomic, coaxial coarse and fine focusing knob on both sides enables ou to adjust and focus your sample rapidly and accurately
- A C-mount adapter is required to connect a camera
| Manufacturer reference | OBN 159 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 390mm x 200 mm x 400 mm |
| Weight | 10 kg |
| Reference | A45442 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity Plan |
| Condenser | 1,25 Abbe condenser |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 20 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Colour filters | Blue, Green |
| Stage | Mechanical |
| Objectives | 4x/PH10x/PH20x/PH40x/PH100x |
