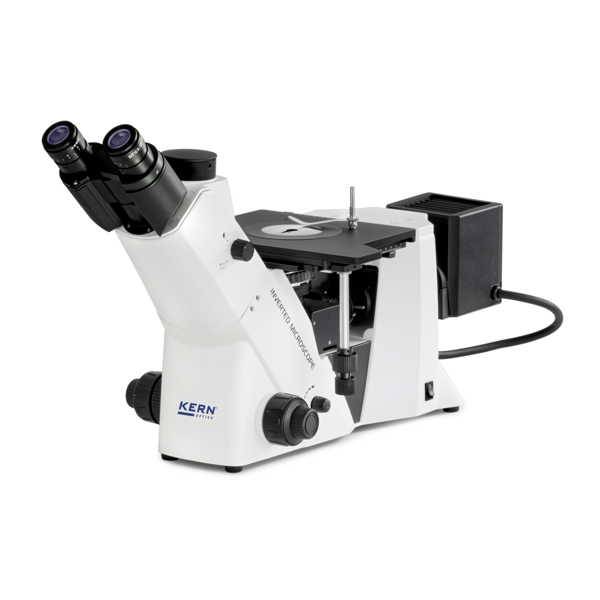

Kern OLM 171 metallurgical microscope (inverted) trinocular
Reference
A39525
Sales Unit
1 Piece
The KERN OLM range consists of inverted microscopes and stands out through its design which is ergonimic, robust and extremely stable. This range, with its large working distance is particularly suitable for surface quality testing of raw materials and finished products in industry. The OLM-microscope is fit for opaque and thick samples, workpieces (surfaces, fold lines, coatings).
Related Products
- Applications: metallurgy, material testing, quality assurance
- Trinocular (eye relief 48-76 mm)
- Light distribution: 100:0
- Infinity optical system
- Objective quality: Infinity Plan (5×/0,13 W.D. 16,04 mm; 10×/0,25 W.D. 18,48 mm; 20×/0,40 W.D. 8,35 mm; 50×/0,70 (spring-loaded) W.D. 1,95 mm)
- Objectives: LWD5×/LWD10×/LWD20×/LWD50×
- Quintuple nosepiece
- Tube inclination: 30°
- Diopter adjustment: both-sided
- Illumination: 50 W Halogen (incident)
- Mechanical stage: 210 mm x 180 mm (w x d), Travel 50 mm x 50 mm
- Strong and continuously adjustable 50 W halogen illumination unit ensures the optimum illumination of the materials to be tested
- As standard, the OLM range is fitted with a trinocular eyepiece tube
- A simple polarising unit (analyser, polariser and colour filter slide) is included with delivery
- A large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both side guarantees optimal adjustment and focusing
| Manufacturer reference | OLM 171 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 747 mm x 271 mm x 379 mm |
| Weight | 13 kg |
| Reference | A39525 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity Plan |
| Illumination | 50 W Halogen (incident) |
| Eyepiece | 2 x HWF 10×/∅ 22 mm |
| Tube | Trinocular (eye relief 48-76 mm) |
| Colour filters | Blue |
| Stage | Mechanical |
| Objectives | LWD5×/LWD10×/ LWD20×/LWD50× |
