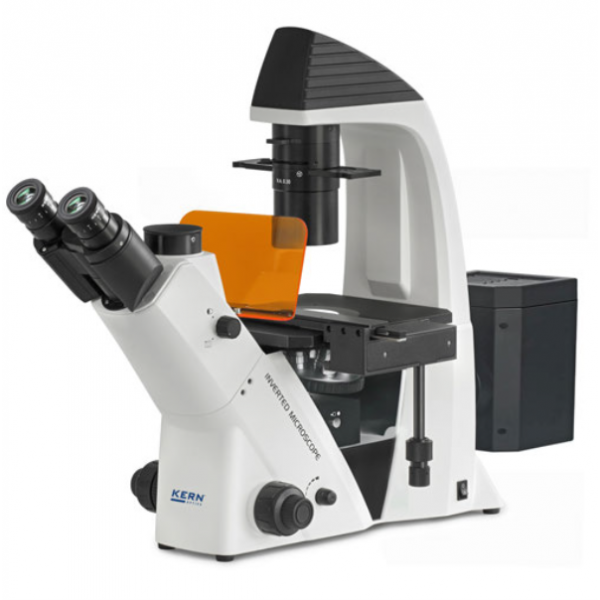

Kern OCM 166 inverse microscope trinocular
Reference
A44230
Sales Unit
Piece
The OCM range stands out through its design which is ergonomic, robust and extremely stable. This design, with its large working distance, is particularly suitable for the monitoring and analysis of cell cultures, for example.
Related Products
- The OCM-microscope is suitable for viewing samples in culture vessels (flasks, petri dishes, microtitre plates), translucent, thin, low-constrast, challenging samples (e.g. living mammal cells, tissue, microorganisms if necessary, immunofluorescence, FISH, DAPI staining, etc.)
- Applications: research and breeding of cell cultures and tissue cultures
- Trinocular, (eye relief 48-76 mm)
- Light distribution: 100:0
- Infinity optical system
- Objective quality: Infinity Plan (10×/0,25 W.D. 10,3 mm; 20×/0,40 W.D. 5,8 mm; 40×/0,60 W.D. 5,1 mm)
- Objectives: LWD10×/LWD20×/LWD40×/LWD20×PH
- Quintuple nosepiece
- Tube inclination: 45° (Siedentopf)
- Diopter adjustment: both-sided
- Illumination: 30 W Halogen + 100 W Epi Fluorescence (UV/V/B/G)
- A strong and continuously adjustable 30W halogen illumination unit ensures the optimum illumination in the bright field of your samples
- A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the very best working practise in the bright field and with fluorescence applications
- As standard, the OCM range is fitted with a trinocular eyepiece tube
- The mechanical stage including drop specimen holder (∅ 110 mm) means that you can work quickly and effectively. Further brackets for petri dishes are included with delivery or available as accessories
- Mechanical stage: 210 mm x 241 mm (w x d), Travel 128 mm x 80 mm
- Coaxical coarse and fine focusing knobs
- The x/y control knobs can be fitted either left or right
- Suitable for attaching a 96-hole microtitre plate
- Specimen holder for 54 mm culture dish
- Phase contrast units: slide 10×, slide 20×/40×, Infinity PH-Plan Fluor objective 20×
- Fluorescence unit: 100 W HBO Epi Fluorescence unit, four-hole slide (UV/V/B/G)
| Manufacturer reference | OCM 166 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 782 mm x 304 mm x 530 mm |
| Weight | 22 kg |
| Reference | A44230 |
| Sales Unit | Piece |
| Objectif quality | Infinity Plan |
| Condenser | Abbe N.A. 0.3 condenser |
| Illumination | 30 W Halogen + 100 W Epi Fluorescence (UV/V/B/G) |
| Eyepiece | 2 x HWF 10×/∅ 22 mm |
| Tube | Trinocular (eye relief 48-76 mm) |
| Colour filters | Blue, Green |
| Objectives | LWD10x/LWD20x/LWD40x/LWD20xPH |
