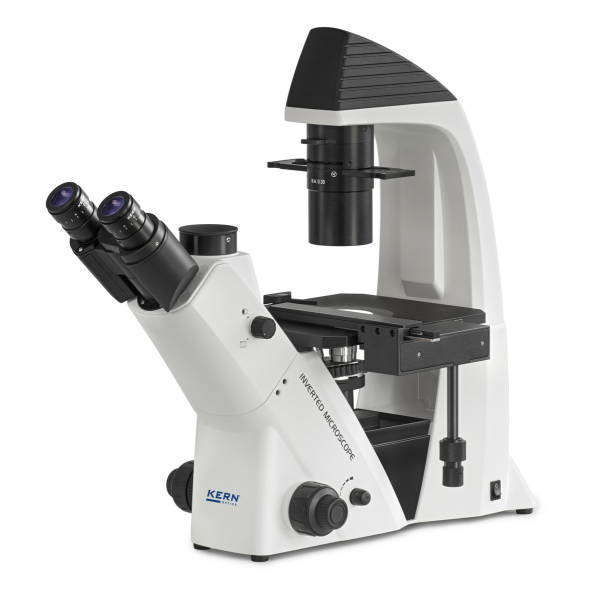

Kern inverse microscope OCM 162
Reference
A50393
Sales Unit
1 Piece
The OCM range stands out through its design which is ergonomic, robust and extremely stable. This design, with its large working distance, is particularly suitable for the monitoring and analysis of cell cultures, for example.
- The OCM-microscope is suitable for viewing samples in culture vessels (flasks, petri dishes, microtitre plates), translucent, thin, low-constrast, challenging samples (e.g. living mammal cells, tissue, microorganisms if necessary, immunofluorescence, FISH, DAPI staining, etc.)
- Applications: research and breeding of cell cultures and tissue cultures
- Trinocular, (eye relief 48-76 mm)
- Light distribution: 100:0
- Infinity optical system
- Objective quality: Infinity Plan (10×/0,25 W.D. 8,3 mm; 20×/0,40 W.D. 7,2 mm; 40×/0,60 W.D. 3,4 mm)
- Objectives: LWD10×/LWD20×/LWD40×/LWD20×PH
- Quintuple nosepiece
- Tube inclination: 45° (Siedentopf)
- Diopter adjustment: both-sided
- Illumination: 5 W LED (transmitted)
- A 5W LED illumination unit ensures the optimum illumination in the bright field of your samples
- A special Abbe N.A. 0.3 condenser with aperture diaphragm and large working distance of 72 mm guarantees the very best working practise in the bright field and with fluorescence applications
- As standard, the OCM range is fitted with a trinocular eyepiece tube
- The mechanical stage including drop specimen holder (∅ 110 mm) means that you can work quickly and effectively. Further brackets for petri dishes are included with delivery or available as accessories
- Coaxical coarse and fine focusing knobs
- The x/y control knobs can be fitted either left or right
- Phase contrast units: slide 10×, slide 20×/40×, Infinity PH-Plan objective 20×
| Manufacturer reference | OCM 162 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 660 mm x 335 mm x 600 mm |
| Weight | 15 kg |
| Reference | A50393 |
| Sales Unit | 1 Piece |
| Objectif quality | Infinity Plan |
| Eyepiece | 2 x HWF 10×/∅ 22 mm |
| Tube | Trinocular (eye relief 48-76 mm) |
| Colour filters | Blue, Green |
| Objectives | LWD10x/LWD20x/LWD40x/LWD20xPH |
No price available or do you need more info for this product? Request your info with the form below.
