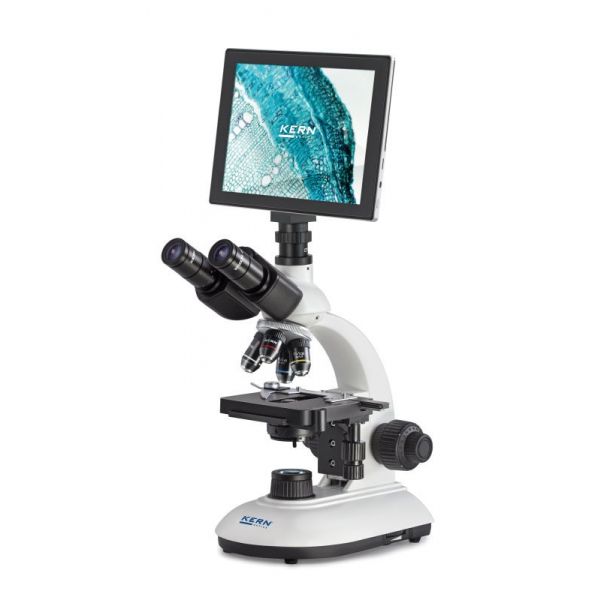

Kern OBE 114T241 digital microscope set
Reference
A39503
Sales Unit
1 Piece
The KERN OBE series is a range of high-quality, fully-equipped compound microscopes, which can't be beaten in terms of ease of use and ergonomic design. Now also available as comprehensive digital solution for your live investigations. Optionally available with an adapted tablet or C-mount camera. Naturally, the appropriate C-mount adapter is included with the delivery.
- Trinocular, (eye relief 50-75 mm)
- Finite optical system (DIN)
- Objective quality: Achromatic
- Objectives: 4×/10×/40×/100×
- Quadplex nosepiece
- Included camera: ODC 241
- Resolution camera: 5 MP
- Interface: Wifi, USB 2.0, HDMI, SD (15 - 30 FPS)
- Sensor: CMOS
- Sensor size: 1/2.5"
- Tube inclination: 30° (Siedentopf)
- Tube can be rotated 360°
- Diopter adjustment: one-sided
- Illumination: 3W-LED (transmitted)
- The strong and continiously dimmable 3 W LED guarantees optimum illumination of the samples and also ensures long service life. Mobile use of several models is also no problem through the use of rechargeable batteries
- The height-adjustable and thereby focusable 1,25 Abbe condenser with aperture diaphragm is a further quality feature of the OBE series and ensures the very best concentration of light
- The adapted KERN ODC 241 tablet-camera has been specially developed for simple, convenient and direct investigation of the sample on the screen. Ideally suited for school pupils and students in education or for demonstration purposes in the laboratory
- The adapted C-mount camera is available in different versions and can be used anywhere
| Manufacturer reference | OBE 134T241 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 320 mm × 180 mm × 365 mm |
| Weight | 6 kg |
| Reference | A39503 |
| Sales Unit | 1 Piece |
| Objectif quality | Achromatic |
| Condenser | 1,25 Abbe condenser |
| Illumination | 3W LED (transmitted) |
| Eyepiece | 2 x HWF 10×/∅ 18 mm |
| Tube | Trinocular (eye relief 50 -75 mm) |
| Objectives | 4x/10x/40x/100x |
