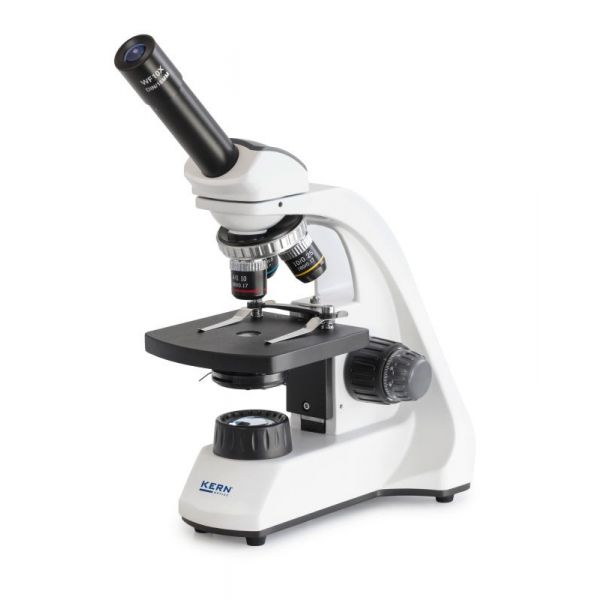

Kern OBT 103 compound microscope (school) monocular
Reference
A39476
Sales Unit
1 Piece
The KERN OBT range is a high-quality school microscope, which will impress you with its intuitive control elements, sturdy construction and modern design. The OBT-microscope is suitable for translucent, thin, high-contrast, less complex samples (e.g. plant tissue, coloured cells/parasites).
Related Products
- Applications: Primary school, high school, education, hobby use
- Monocular
- Objectives: 4×/10×/40×
- Mechanical stage, 115 mm × 110 mm (W x D), Travel 52 mm x 20 mm
- Table with coaxial, coarse and fine focus knob on both sides, scale: 2 μm
- Optical system: Finite optical system (DIN)
- Tubus can be rotated 360°
- Condenser: 1,25 Abbe
- Objective quality: achromat
- Quadruple nosepiece
- Tube inclination: 45°
| Manufacturer reference | OBT 103 |
|---|---|
| eclass | 32010000 |
| leadtime | 5 |
| Brand | KERN |
| ISO code | PCE |
| UNSPSC code | 41111700 |
| Overall dimensions | 195 mm x 147 mm x 325 mm (b x d x h) |
| Weight | 2,5 kg |
| Reference | A39476 |
| Sales Unit | 1 Piece |
| Objectif quality | Achromatic |
| Condenser | 1,25 Abbe condenser |
| Illumination | 1W LED (transmitted) |
| Eyepiece | 1 x WF 10×/∅ 18 mm |
| Tube | Monocular |
| Stage | Mechanical |
| Objectives | 4x/10x/40x |
No price available or do you need more info for this product? Request your info with the form below.
