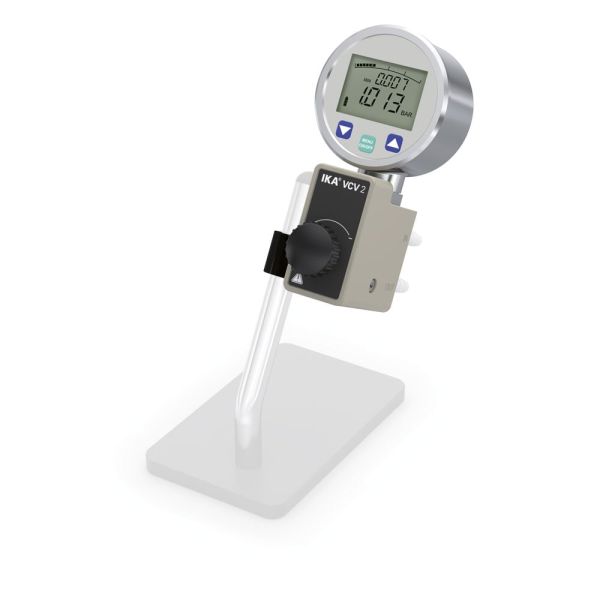

IKA vacuum control valve with digital manometer VCV 2

Reference
A55684
Sales Unit
1 Piece

IKA vacuum control valve for setting the vacuum value on the digital manometer, with a control range of 1 – 1050 mbar and a venting valve.

Login for Price

The VCV 2 is used to set the required vacuum value and read it on the digital manometer (LCD). The valve has 8 mm hose connections, a venting valve and a PP housing with protection class IP 65, and is fastened to a stand or clamp. The VC 10.400 stand is not included and is available as an accessory.

Technical data

  • Connection diameter suction side: 8 mm
  • Connection diameter pressure side: 8 mm
  • Inlet pressure: 1 – 1050 mbar
  • Pressure unit / scale: mbar
  • Control range: 1 – 1050 mbar
  • Measurement uncertainty: 1 mbar
  • Medium temperature (gas): 5°C → 40°C
  • Material in contact with medium: Al2O3, PP, stainless steel
  • Fastening: Stand / clamp
  • Dimensions (W × H × D): 65 × 255 × 140 mm
  • Weight: 700 g
  • Protection class according to DIN EN 60529: IP 65

Suitable for

Suitable for IKA MVP 10 basic and the RV 3 and RV 8 rotary evaporators.

More Information
Iso Code PCE
UNSPSC code 41103800
Brand Ika
Manufacturer reference 0020004893
leadtime 10
ISO code PCE
eclass 32010000
Overall dimensions 65 x 255 x 140 mm
Reference A55684
Sales Unit 1 Piece
