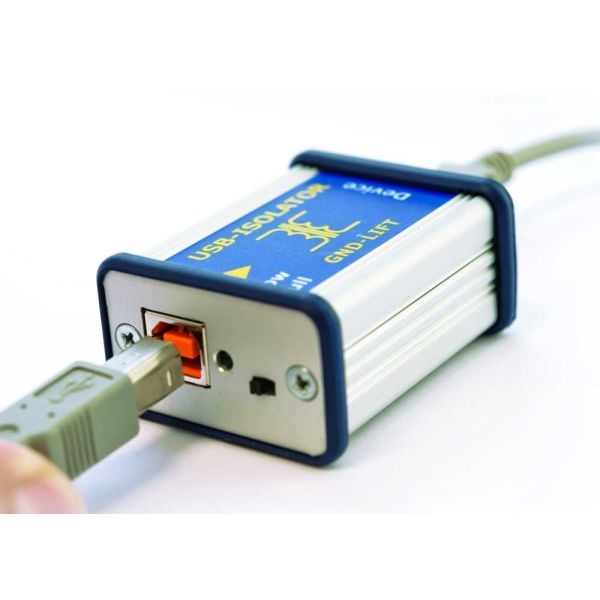

IKA USB ISO USB Isolator
Reference
A56501
Sales Unit
1 Piece
USB insulator to improve the USB connection between a laboratory device and a PC. - no driver required - no power supply required - Insulation: 1000 VDC (tested for use in 1 second) Nominal value: 500 V at 60 Hz - Overcurrent protection: over-voltage and transients cancellation supports streaming to 8 KV - Power supply: USB, no power supply required - USB Operating Modes: Low Speed (1.5 Mbps), full-speed (12 Mbit/s) - Temperature range: -20 °C to + 70 °C
USB insulator to improve the USB connection between a laboratory device and a PC. - no driver required - no power supply required - Insulation: 1000 VDC (tested for use in 1 second) Nominal value: 500 V at 60 Hz - Overcurrent protection: over-voltage and transients cancellation supports streaming to 8 KV - Power supply: USB, no power supply required - USB Operating Modes: Low Speed (1.5 Mbps), full-speed (12 Mbit/s) - Temperature range: -20 °C to + 70 °C
| Iso Code | PCE |
|---|---|
| UNSPSC code | 41103800 |
| Brand | Ika |
| Manufacturer reference | 0020101935 |
| ISO code | PCE |
| eclass | 32010000 |
| leadtime | 10 |
| Reference | A56501 |
| Sales Unit | 1 Piece |
